PackageRadial
Voltage32V
Resistance33R
Current Rating1.5A
Quick Jump:
Technical Specifications
Murata PTGL07BD330N3B51B0 technical specifications.
General
Package/Case
Radial
Current Rating
1.5A
Depth
4mm
Hold Current
60mA
Lead Pitch
5mm
Max Current Rating
1.5A
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Mount
Through Hole
Operating Supply Voltage
32V
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
33R
Resistance Tolerance
30%
RoHS Compliant
Yes
Series
POSISTOR®, PTGL
Termination
Radial
Thickness
4mm
Tolerance
30%
Trip Current
135mA
Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Murata PTGL07BD330N3B51B0 Datasheet
Download the complete datasheet for Murata PTGL07BD330N3B51B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

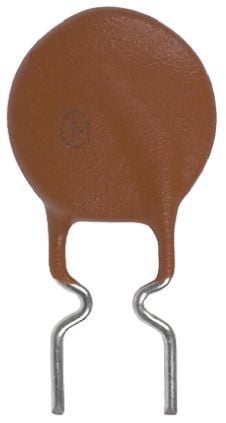

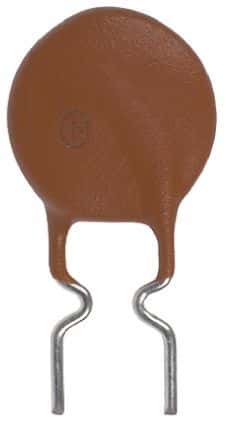

Product Images
