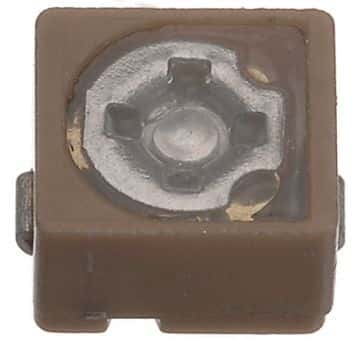

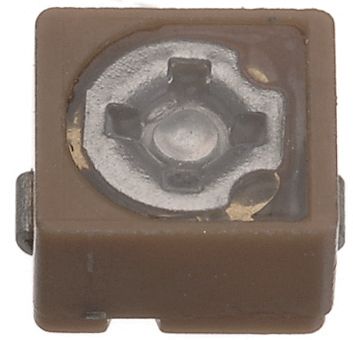

Ceramic trimmer capacitor with a capacitance range of 8.5pF to 40pF and a voltage rating of 100V. Features a general-purpose design with a 50% tolerance, suitable for surface mount applications. Operating temperature range from -25°C to 85°C, with a lead pitch of 2.7mm. Packaged in tape and reel, this RoHS compliant component utilizes a ceramic dielectric.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata TZB4P400AB10R00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 40pF |
| Package/Case | B |
| Color | Yellow |
| Depth | 4.5mm |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height | 3mm |
| Height - Seated (Max) | 0.126inch |
| Lead Free | Lead Free |
| Lead Pitch | 2.7mm |
| Length | 0.177inch |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TZB4 |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 50% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.157inch |
| RoHS | Compliant |
