Surface mount ceramic variable capacitor with a capacitance range of 2pF to 6pF, featuring NP0 dielectric for stability. This component offers a 100V DC rating and a wide operating temperature range from -25°C to 85°C. Designed for general purpose applications, it is supplied in a tape and reel package for automated assembly. The capacitor is lead-free, RoHS compliant, and measures 4.5mm in depth, 3mm in height, and 0.177 inches in length.
PackageB
Voltage100V
Capacitance6pF
Voltage Rating100V
Quick Jump:
Technical Specifications
Murata TZB4Z060BB10R00 technical specifications.
General
Capacitance
6pF
Package/Case
B
Color
Blue
Depth
4.5mm
Dielectric
NP0
Dielectric Material
Ceramic
Features
General Purpose
Height
3mm
Height - Seated (Max)
0.126inch
Lead Free
Lead Free
Length
0.177inch
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
TZB4
Termination
SMD/SMT
Tolerance
50%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Murata TZB4Z060BB10R00 Datasheet
Download the complete datasheet for Murata TZB4Z060BB10R00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

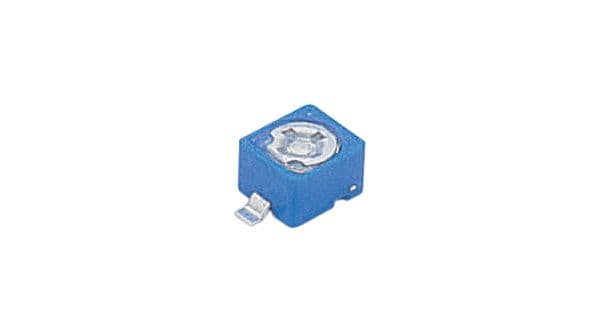

Product Images
