Murata
TZB4Z100AB10R00
Variable Capacitor, Ceramic, 100V, 50% +Tol, 0% -Tol, 3pF Min, 10pF Max, Vertical Adjuster, Surface Mount, CHIP
PackageB
Voltage100V
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata TZB4Z100AB10R00 technical specifications.
General
Package/Case
B
Depth
4.5mm
Dielectric Material
Ceramic
Features
General Purpose
Height
3mm
Height - Seated (Max)
0.126inch
Length
0.177inch
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TZB4
Termination
SMD/SMT
Tolerance
50%
Voltage
100V
Voltage Rating
100V
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Murata TZB4Z100AB10R00 Datasheet
Download the complete datasheet for Murata TZB4Z100AB10R00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

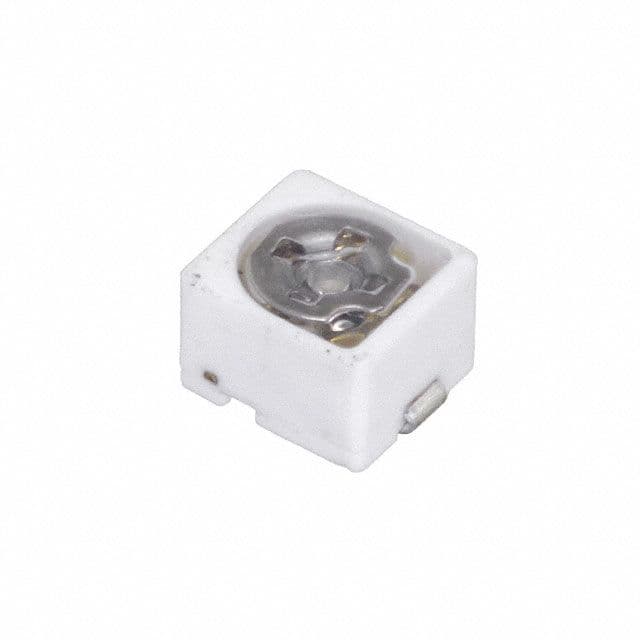

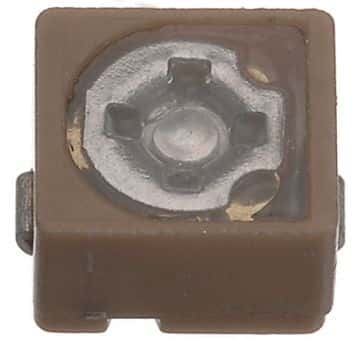

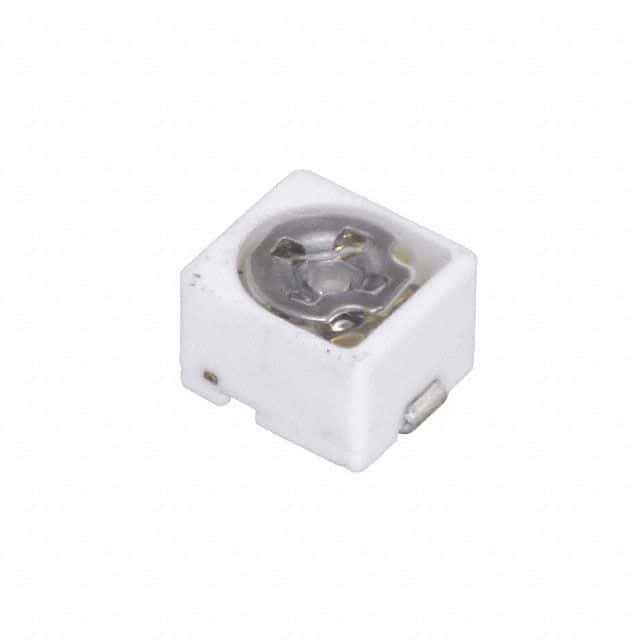

Product Images
