Board mount DC-DC converter, 30W output power, 15V single output voltage, and 2A maximum output current. Features include UVLO, OVP, OTP, and SCP protection, with 2.25kV isolation. Operates from a 36V to 75V input voltage range, with a nominal input of 48V, and offers 89% efficiency. Housed in a sixteenth brick package with through-hole mounting, this RoHS compliant module operates from -40°C to 85°C.
PackageModule
MountingThrough Hole
Power30W
Quick Jump:
Technical Specifications
Murata ULS-15/2-D48N-C technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 2A |
| Depth | 33.27mm |
| Efficiency | 89% |
| Features | UVLO, OVP, OTP, SCP |
| Height | 0.4inch |
| Isolation | Isolated |
| Isolation Voltage | 2.25kV |
| Lead Free | Lead Free |
| Length | 23.11mm |
| Max Input Voltage | 75V |
| Min Input Voltage | 36V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 30W |
| Mount | Through Hole |
| Nominal Input Voltage | 48V |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Power | 30W |
| Output Voltage | 15V |
| Package Quantity | 32 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ULS |
| Voltage - Output 1 | 15V |
| Width | 0.9inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata ULS-15/2-D48N-C Datasheet
Download the complete datasheet for Murata ULS-15/2-D48N-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

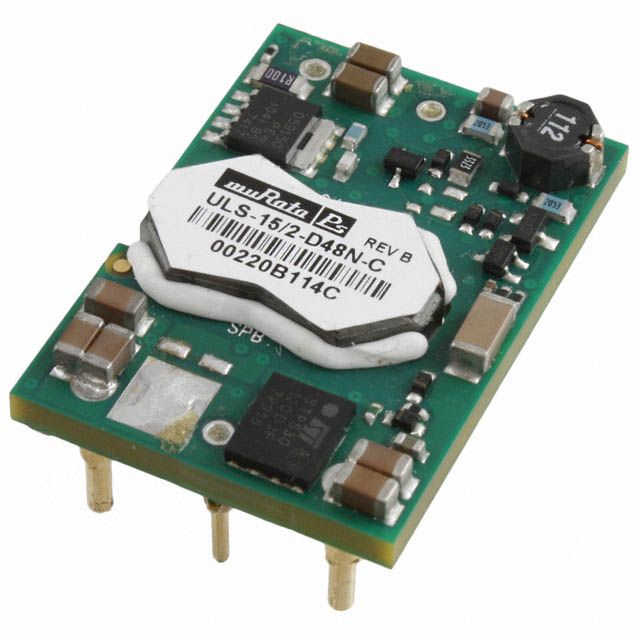

Product Images
