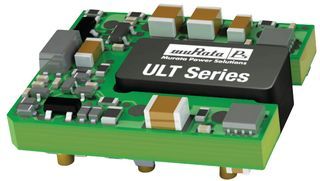

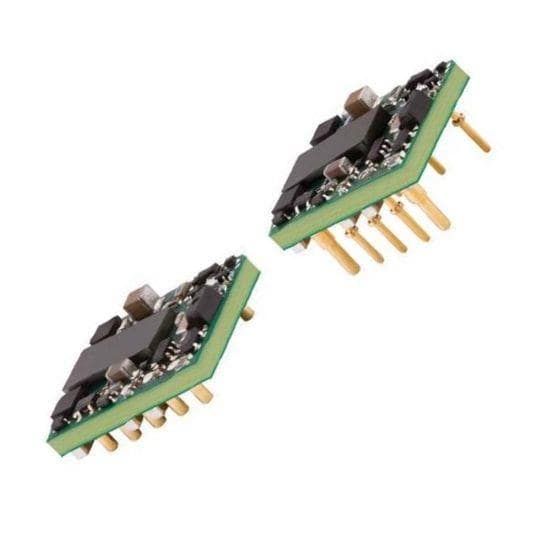

Board mount DC-DC converter, 1-output, 25W, 5A output current, 5V nominal output voltage. Features 35V to 75V DC input range, 89% efficiency, and 1.5kV isolation voltage. Operates from -40°C to 85°C, with UVLO protection. Surface mount package, RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power25W
Quick Jump:
Technical Specifications
Murata ULT-5/5-D48NM-C technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
5A
Depth
23.38mm
Efficiency
89%
Features
UVLO
Height
0.35inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.92inch
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
35V
Max Input Voltage
75V
Min Input Voltage
36V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Power
25W
Max Power Dissipation
25W
Mount
Surface Mount
Nominal Input Voltage
48V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
5A
Output Power
25W
Output Voltage
5V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ULT
Voltage - Output 1
5V
Width
0.75inch
Compliance
RoHS
Not CompliantNo
