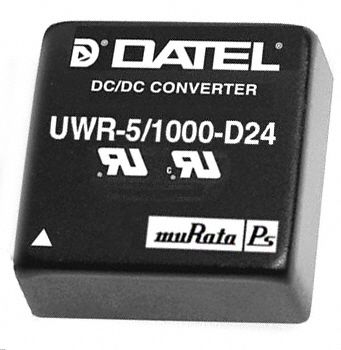

Board mount DC-DC converter, 5W output power, 1A maximum output current, and 5V nominal output voltage. Features isolated operation with 1.5kV isolation voltage and a hybrid construction. Operates within an input voltage range of 18V to 36V DC, with 75% efficiency. Housed in a DIP package, measuring 1 inch x 1 inch x 0.45 inches, and rated UL94 V-0 for flammability. Suitable for through-hole mounting and operates from -25°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata UWR-5/1000-D24-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Current - Output 1 | 1A |
| Depth | 25.4mm |
| Efficiency | 75% |
| Flammability Rating | UL94 V-0 |
| Height | 0.45inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 1inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 1A |
| Max Output Power | 5W |
| Max Power Dissipation | 5W |
| Mount | Through Hole |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Power | 15W |
| Output Voltage | 5V |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | UWR |
| Voltage - Output 1 | 5.2V |
| Weight | 20g |
| Width | 1inch |
| RoHS | Compliant |
