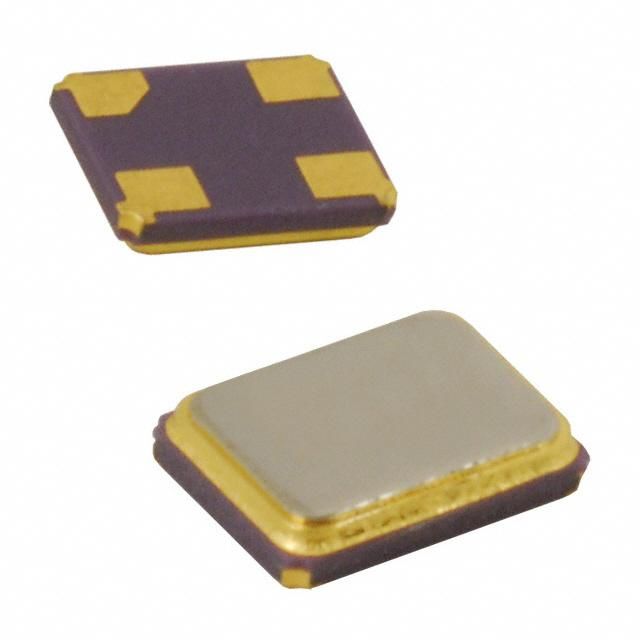

The NX2520SA-16MHZ-EXS00A-CS05116 is a 16MHz crystal with a frequency stability of 15ppm. It has an equivalent series resistance of 80R and a load capacitance of 12pF. This crystal is available in an SMD/SMT package and is suitable for surface mount applications. The operating temperature range is from -10°C to 75°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NDK NX2520SA-16MHZ-EXS00A-CS05116 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 80R |
| Frequency | 16MHz |
| Frequency Stability | 15ppm |
| Frequency Tolerance | 15ppm |
| Height | 0.022inch |
| Length | 0.098inch |
| Load Capacitance | 12pF |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Series | NX2520SA |
| Width | 0.079inch |
| RoHS | Compliant |
