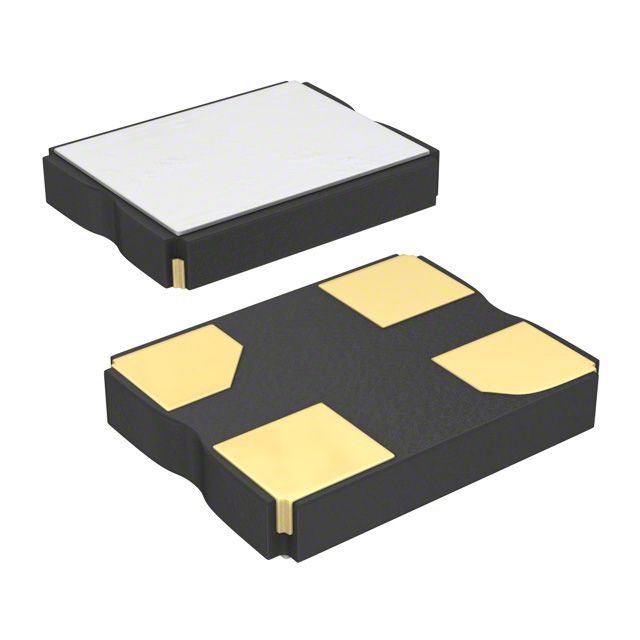

19.2MHz SMD crystal oscillator featuring 10ppm frequency tolerance and 12ppm frequency stability. This surface mount component offers a 7pF load capacitance and a low ESR of 70 Ohms. Designed for operation between -30°C and 85°C, it measures 0.098 inches in length, 0.079 inches in width, and 0.035 inches in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NDK NX2520SG-19.2M-STD-CTX-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NDK NX2520SG-19.2M-STD-CTX-1 technical specifications.
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 70R |
| Frequency | 19.2MHz |
| Frequency Stability | 12ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.035inch |
| Length | 0.098inch |
| Load Capacitance | 7pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Series | NX2520SG |
| Width | 0.079inch |
| RoHS | Compliant |
