16MHz SMD crystal oscillator featuring 8pF load capacitance and 20ppm frequency tolerance. Offers 30ppm frequency stability across an operating temperature range of -40°C to 85°C. This surface mount component has an Equivalent Series Resistance (ESR) of 80 Ohms and is supplied in cut tape packaging.
Frequency16MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
NDK NX3225GA-16.000M-STD-CRG-2 technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
80R
Frequency
16MHz
Frequency Stability
30ppm
Frequency Tolerance
20ppm
Load Capacitance
8pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Cut Tape
Series
NX3225GA
Compliance
RoHS
Compliant
Datasheet
NDK NX3225GA-16.000M-STD-CRG-2 Datasheet
Download the complete datasheet for NDK NX3225GA-16.000M-STD-CRG-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

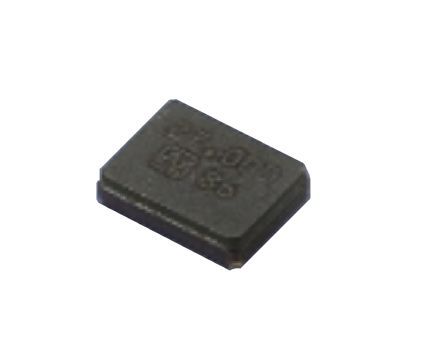

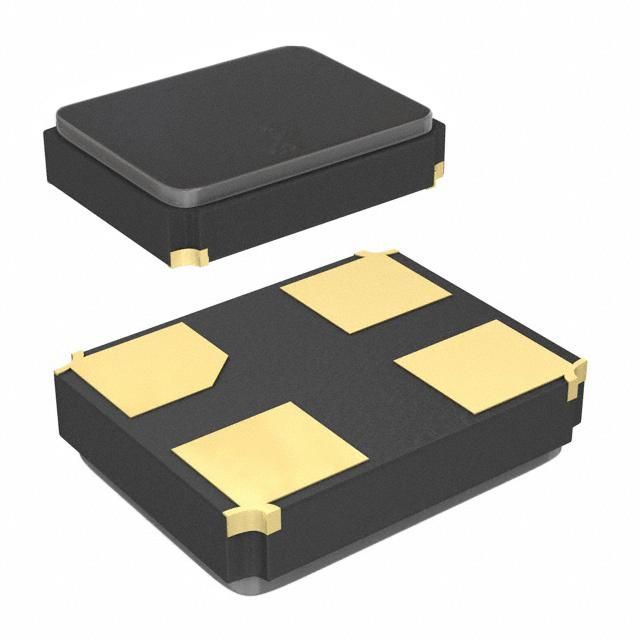

Product Images
