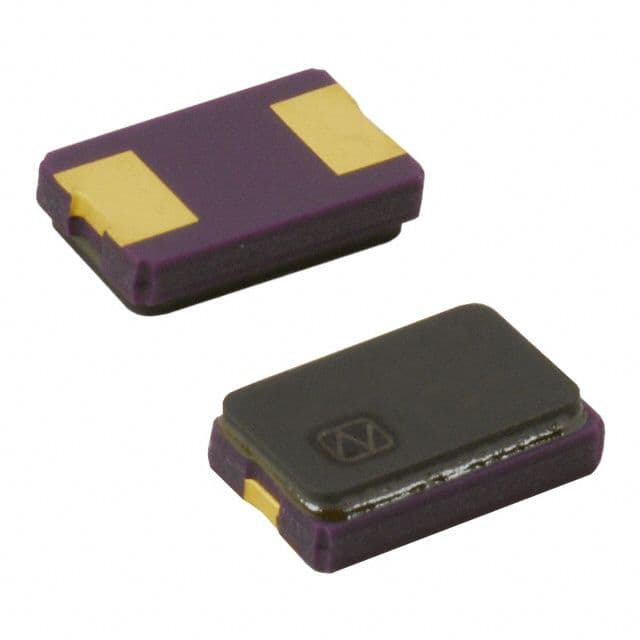

SMD crystal oscillator operating at 12MHz. Features a load capacitance of 8pF and frequency tolerance of 50ppm, with a frequency stability of 150ppm. Encased in an SMD/SMT package with dimensions of 0.197" L x 0.126" W x 0.059" H. This component offers an operating temperature range of -40°C to 150°C and meets AEC-Q200 and RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NDK NX5032GA-12.000M-STD-CSU-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 150R |
| Frequency | 12MHz |
| Frequency Stability | 150ppm |
| Frequency Tolerance | 50ppm |
| Height | 0.059inch |
| Length | 0.197inch |
| Load Capacitance | 8pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | NX5032GA |
| Width | 0.126inch |
| RoHS | Compliant |
