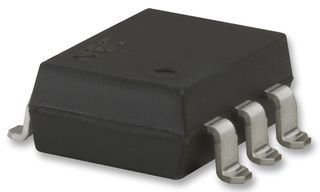

This solid state relay is a single pole single throw (SPST) device with a forward current rating of 10mA and a load current rating of 2.5A. It has an isolation voltage of 1.5kV and is packaged in a PDIP case. The relay is lead free and RoHS compliant. It measures 3.5mm in height, 6.5mm in width, and 9.25mm in length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NEC PS710BL-1A-E3-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NEC PS710BL-1A-E3-A technical specifications.
| Package/Case | PDIP |
| Forward Current | 10mA |
| Height | 3.5mm |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 9.25mm |
| Load Current | 2.5A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Throw Configuration | SPST |
| Width | 6.5mm |
| RoHS | Compliant |
Download the complete datasheet for NEC PS710BL-1A-E3-A to view detailed technical specifications.
