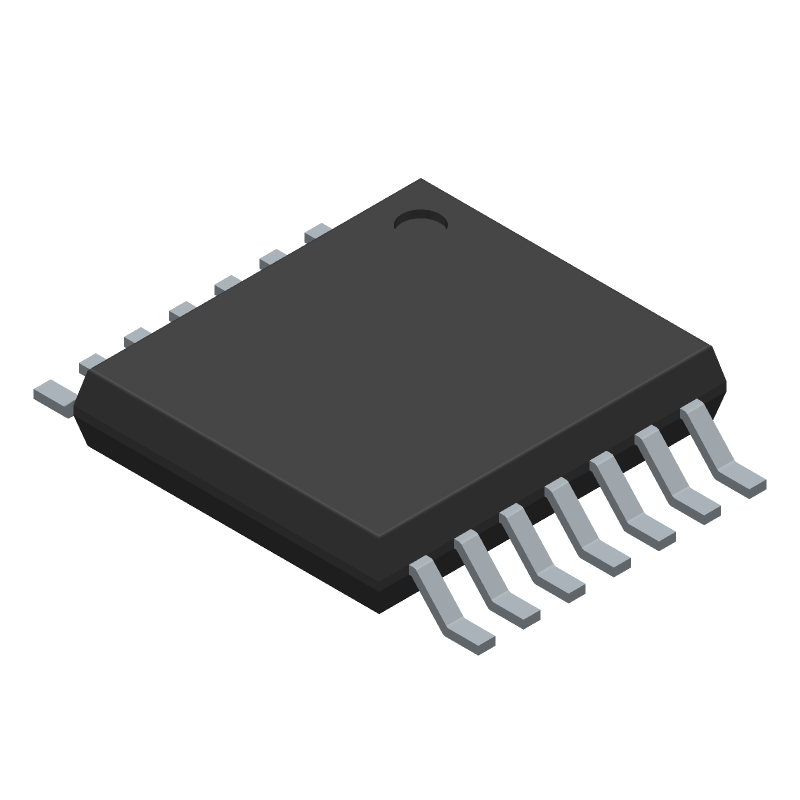

The Nexperia 74AHC14PW,118 is a 14-channel dual inverter logic IC with a maximum operating temperature of 125°C. It features a 5V nominal supply voltage with a maximum of 5.5V and a minimum of 2V. The device is packaged in a TSSOP-14 package and is designed for automotive applications. The logic IC type is an inverter, and it has a propagation delay of 20.5ns. It can operate in temperatures ranging from -40°C to 125°C.
Quick Jump:
Technical Specifications
Nexperia 74AHC14PW,118 technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 14 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G14 |
| Width | 4.4 |
| Length | 5 |
| Pin Count | 14 |
| Number of Functions | 6 |
| Temperature Grade | AUTOMOTIVE |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Max (Vsup) | 5.5 |
| Supply Voltage-Min (Vsup) | 2 |
| Logic IC Type | INVERTER |
| Family | AHC |
| Propagation Delay (tpd) | 20.5 |
| Number of Inputs | 1 |
Compliance
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Nexperia 74AHC14PW,118 Datasheet
Download the complete datasheet for Nexperia 74AHC14PW,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
