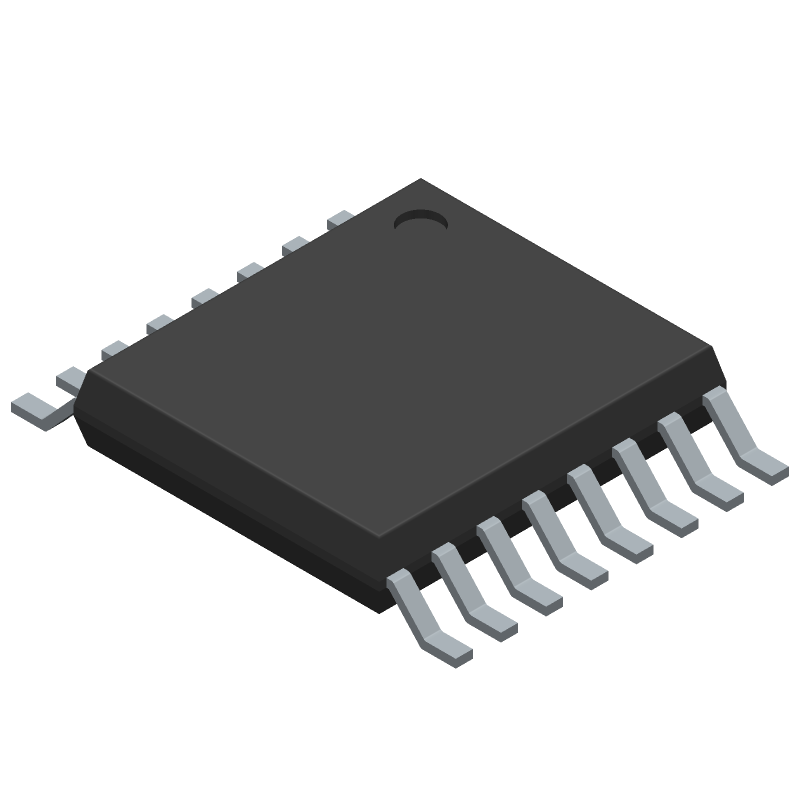

The 74HC4040PW,118 is a 16-bit binary counter with 12-bit counting capability, operating within a supply voltage range of 2V to 6V and a nominal supply voltage of 5V. It features a propagation delay of 225ns and a maximum frequency of 24MHz. The counter can be triggered by a negative edge and counts in the upward direction. It is packaged in a TSSOP-16 package and is suitable for use in automotive applications, with an operating temperature range of -40°C to 125°C.
Quick Jump:
Technical Specifications
Nexperia 74HC4040PW,118 technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 16 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G16 |
| Width | 4.4 |
| Length | 5 |
| Pin Count | 16 |
| Number of Functions | 1 |
| Temperature Grade | AUTOMOTIVE |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Max (Vsup) | 6 |
| Supply Voltage-Min (Vsup) | 2 |
| Logic IC Type | BINARY COUNTER |
| Family | HC/UH |
| Propagation Delay (tpd) | 225 |
| Number of Bits | 12 |
| Count Direction | UP |
| Trigger Type | NEGATIVE EDGE |
| fmax-Min | 24 |
Compliance
| RoHS | Yes |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
