Nexperia
PESD5V0S2UQ,115

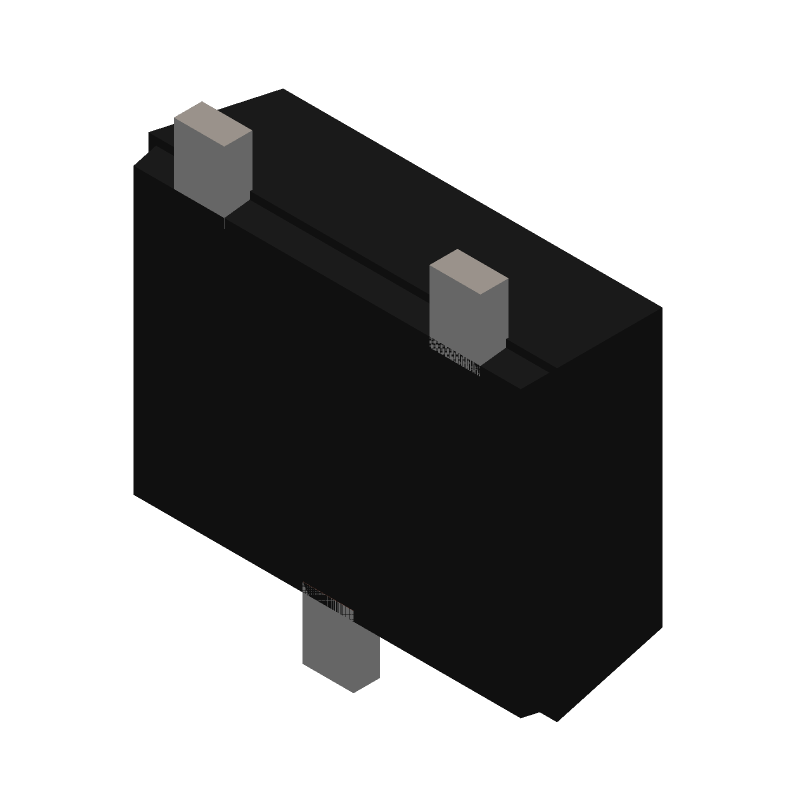

Dual Silicon Transient Voltage Suppressor Diode 5V 6.46V 7.14V 110mW 3-Pin R-PDSO-F3
The PESD5V0S2UQ,115 is a dual silicon transient voltage suppressor diode with a maximum operating temperature of 150 degrees Celsius. It features a unidirectional polarity and is constructed from silicon diode material. The device has a maximum reverse voltage of 5V and a minimum breakdown voltage of 6.46V. The non-repetitive peak reverse power dissipation is 110mW, and the maximum power dissipation is 0.425W. The diode is available in a 3-pin R-PDSO-F3 package type.
PolarityUNIDIRECTIONAL
Quick Jump:
Technical Specifications
Nexperia PESD5V0S2UQ,115 technical specifications.
General
| Max Operating Temperature | 150 |
| Number of Terminals | 3 |
| Terminal Position | DUAL |
| Pin Count | 3 |
| Number of Elements | 2 |
| Polarity | UNIDIRECTIONAL |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Rep Pk Reverse Voltage-Max | 5 |
| Breakdown Voltage-Min | 6.46 |
| Non-rep Peak Rev Power Dis-Max | 110 |
| Breakdown Voltage-Max | 7.14 |
| Power Dissipation-Max | 0.425 |
Compliance
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.50 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Nexperia PESD5V0S2UQ,115 Datasheet
Download the complete datasheet for Nexperia PESD5V0S2UQ,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
