Technical Specifications

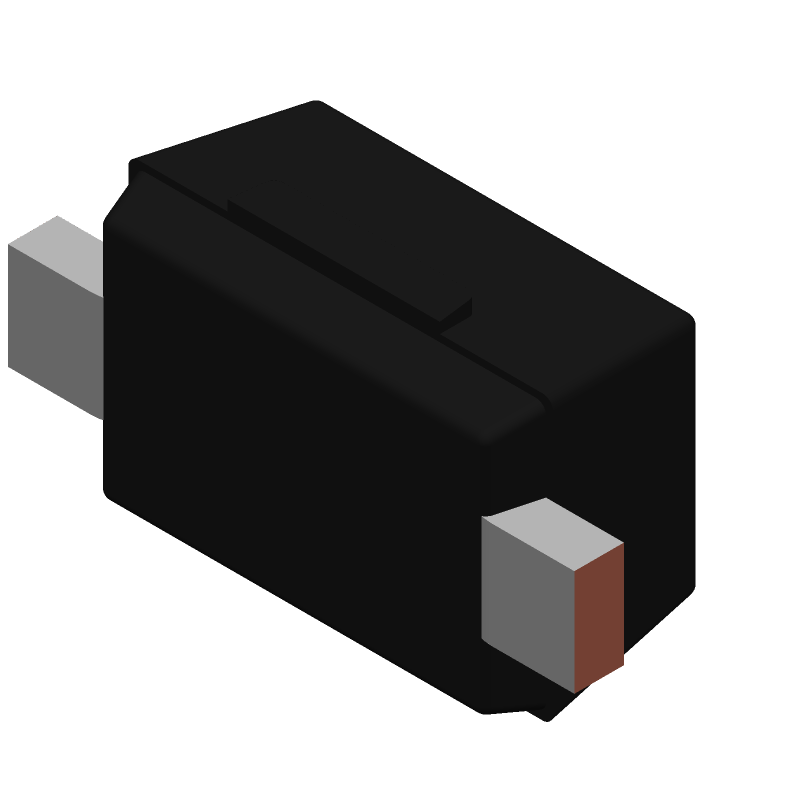

Nexperia PESD5V0U1BBYL technical specifications.
General
| Max Operating Temperature | 150 |
| Number of Terminals | 2 |
| Terminal Position | DUAL |
| Pin Count | 2 |
| Number of Elements | 2 |
| Polarity | BIDIRECTIONAL |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Rep Pk Reverse Voltage-Max | 5 |
| Breakdown Voltage-Min | 5.5 |
| Breakdown Voltage-Max | 9.5 |
Compliance
| REACH | Compliant |
| Military Spec | False |
Datasheet
Nexperia PESD5V0U1BBYL Datasheet
Download the complete datasheet for Nexperia PESD5V0U1BBYL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
