1 Farad, 2.7 Volt radial supercapacitor with 20% tolerance. Features 4 Ohm ESR and a compact 6.3mm diameter by 9mm height. Designed for through-hole mounting with a 2.5mm lead pitch, operating from -25°C to 70°C. Bulk packaged for high-volume applications.
PackageRadial
Capacitance1F
Voltage Rating2.7V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon JUWT1105MCD technical specifications.
General
Capacitance
1F
Package/Case
Radial
Diameter
6.3mm
ESR (Equivalent Series Resistance)
4R
Height
9mm
Lead Pitch
2.5mm
Length
9mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EVerCAP® JUW
Termination
Radial
Tolerance
20%
Voltage Rating
2.7V
DC Rated Voltage
2.7V
Compliance
RoHS
Compliant
Datasheet
Nichicon JUWT1105MCD Datasheet
Download the complete datasheet for Nichicon JUWT1105MCD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

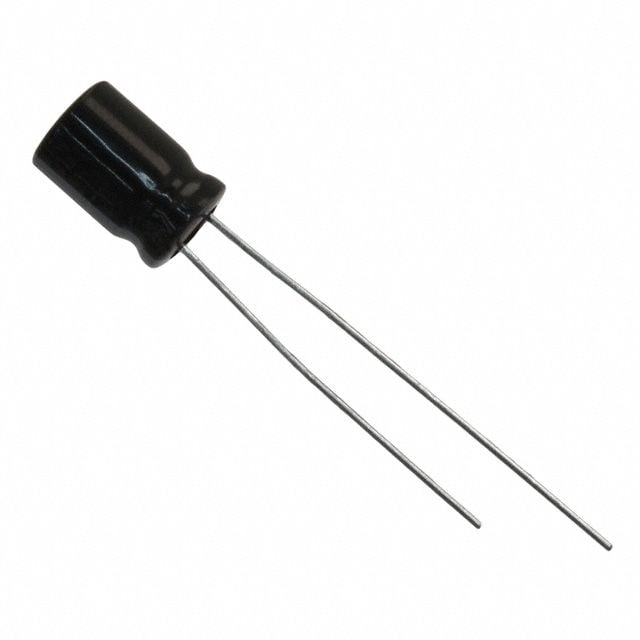

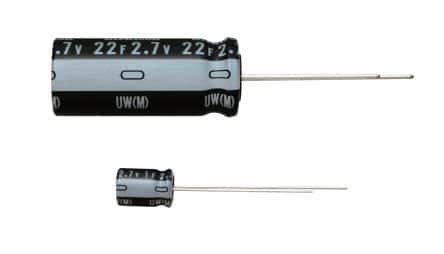

Product Images
