Technical Specifications
Nichicon JUWT1275MPD technical specifications.
General
| Capacitance | 2.7F |
| Package/Case | Radial |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 2R |
| Lead Pitch | 3.5mm |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVerCAP® JUW |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 2.7V |
| DC Rated Voltage | 2.7V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon JUWT1275MPD Datasheet
Download the complete datasheet for Nichicon JUWT1275MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

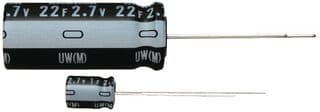

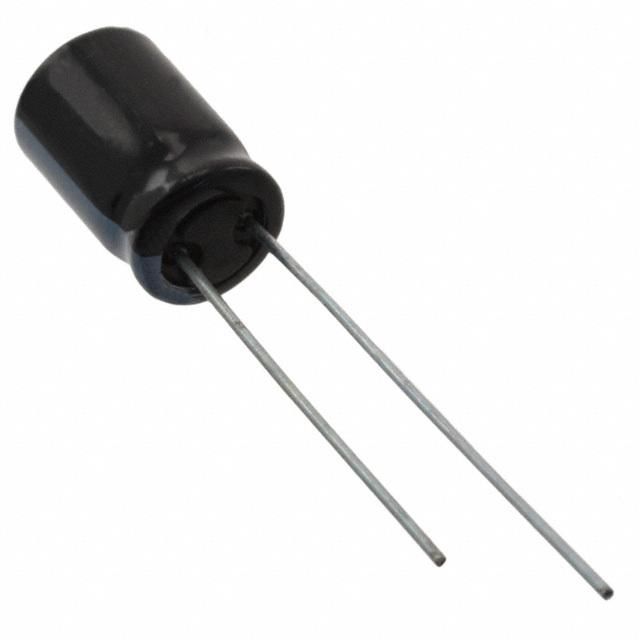

Product Images
