Standard aluminum electrolytic capacitor, 270µF capacitance, 200V DC rated voltage, with a ±20% tolerance. Features a 10mm lead pitch, 0.8mm lead diameter, and snap-in termination. Rated for 1000mA ripple current and 2000 hours of life at 105°C. Operates from -40°C to 105°C, with a leakage current of 690µA. Dimensions are 30mm diameter and 15mm height.
PackageRadial
Voltage200V
Capacitance270uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Nichicon LGJ2D271MELB15 technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 15mm |
| Height - Seated (Max) | 0.669inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 690uA |
| Length | 15mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1A |
| RoHS Compliant | Yes |
| Series | GJ (15) |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGJ2D271MELB15 Datasheet
Download the complete datasheet for Nichicon LGJ2D271MELB15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

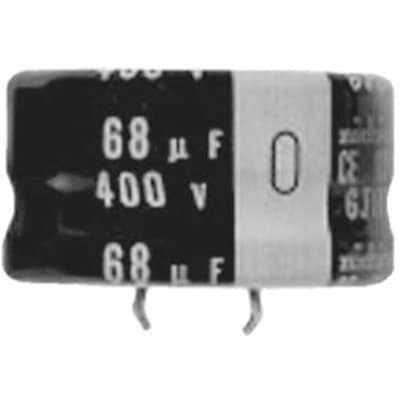

Product Images
