Standard aluminum electrolytic capacitor with 150µF capacitance and 315V DC rated voltage. Features 20% tolerance, 700mA ripple current, and a 3000-hour life at 105°C. Radial package measures 30mm diameter by 20mm height, with a 10mm lead pitch and 1.5mm lead diameter. Snap-in termination for through-hole mounting. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage315V
Capacitance150uF
Voltage Rating315V
Quick Jump:
Technical Specifications
Nichicon LGJ2F151MELB technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Leakage Current | 650uA |
| Length | 20mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 700mA |
| RoHS Compliant | Yes |
| Series | GJ |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 315V |
| Voltage Rating | 315V |
| DC Rated Voltage | 315V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGJ2F151MELB Datasheet
Download the complete datasheet for Nichicon LGJ2F151MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

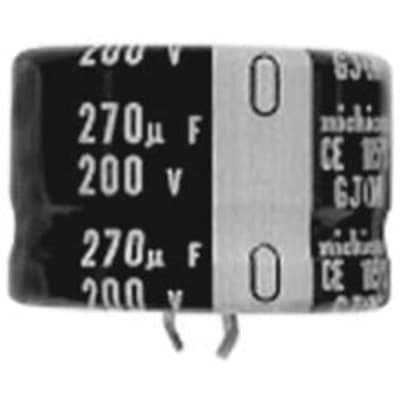

Product Images
