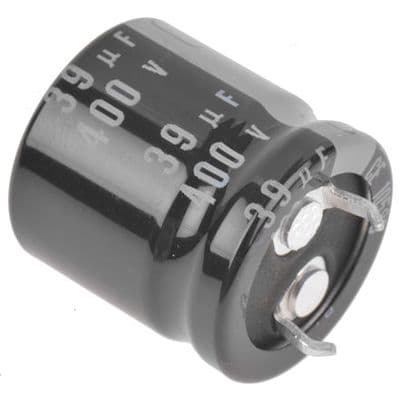

Aluminum electrolytic capacitor, 39µF capacitance, 400V DC rated voltage, 20% tolerance. Features snap-in termination, through-hole mounting, and a 10mm lead pitch. Operates within a -25°C to 105°C temperature range, offering 3000 hours of life at rated conditions with 320mA ripple current. Dimensions are 20mm diameter and 20mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon LGJ2G390MELY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 39uF |
| Package/Case | Radial |
| Diameter | 20mm |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Leakage Current | 370uA |
| Length | 20mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 320mA |
| RoHS Compliant | Yes |
| Series | GJ |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
| RoHS | Compliant |
