Standard aluminum electrolytic capacitor, 390µF capacitance, 180V DC rated voltage, and 20% tolerance. Features a 1.2A ripple current, 790µA leakage current, and a lifespan of 3000 hours at 105°C. Radial package with snap-in termination, measuring 30mm in diameter and 20mm in height, with a 10mm lead pitch. Through-hole mounting, operating from -40°C to 105°C, and supplied in bulk packaging.
PackageRadial
Voltage180V
Capacitance390uF
Voltage Rating180V
Quick Jump:
Technical Specifications
Nichicon LGJ2Z391MELB technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Leakage Current | 790uA |
| Length | 20mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.2A |
| RoHS Compliant | Yes |
| Series | GJ |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 180V |
| Voltage Rating | 180V |
| DC Rated Voltage | 180V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGJ2Z391MELB Datasheet
Download the complete datasheet for Nichicon LGJ2Z391MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

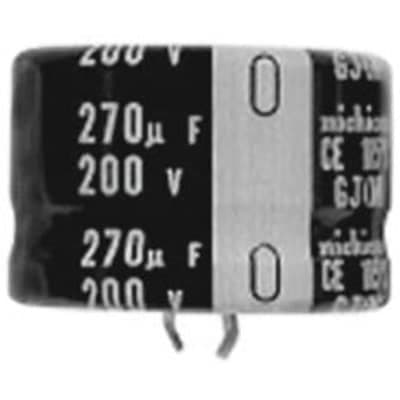

Product Images
