Technical Specifications
Nichicon LGJ2Z561MELC technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Diameter | 35mm |
| Height | 20mm |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Leakage Current | 950uA |
| Length | 20mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.43A |
| RoHS Compliant | Yes |
| Series | GJ |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 180V |
| Voltage Rating | 180V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGJ2Z561MELC Datasheet
Download the complete datasheet for Nichicon LGJ2Z561MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

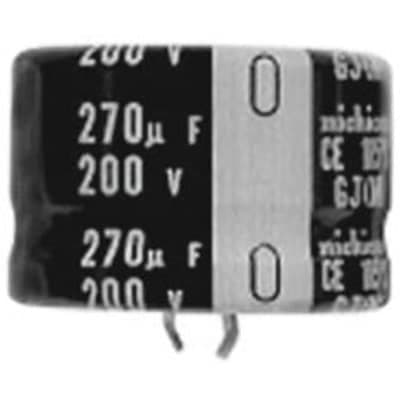

Product Images
