Nichicon
LGL2G102MELC50

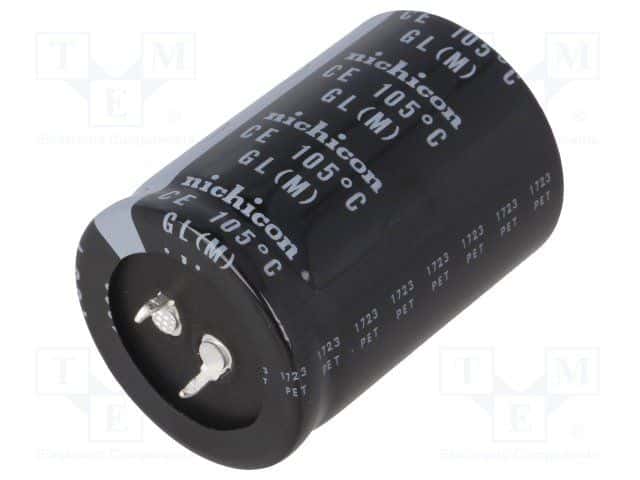

Cap Aluminum Lytic 1000uF 400V 20% (35 X 50mm) Snap-In 10mm 2200mA 2000h 105°C Bulk
PackageRadial
Voltage400V
Capacitance1mF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon LGL2G102MELC50 technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Diameter
35mm
Height
50mm
Lead Diameter
0.8mm
Lead Pitch
10mm
Leakage Current
1.89mA
Length
50mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.2A
RoHS Compliant
Yes
Series
GL
Termination
Snap in
Tolerance
20%
Voltage
400V
Voltage Rating
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
Nichicon LGL2G102MELC50 Datasheet
Download the complete datasheet for Nichicon LGL2G102MELC50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
