Nichicon
LGN2D681MELB25
Cap Aluminum Lytic 680uF 200V 20% (30 X 25mm) Snap-In 10mm 1750mA 3000h 105°C Bulk
PackageRadial
Capacitance680uF
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGN2D681MELB25 technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Diameter
30mm
Features
General Purpose
Height
25mm
Height - Seated (Max)
1.063inch
Lead Pitch
10mm
Leakage Current
1.1mA
Length
25mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.75A
RoHS Compliant
Yes
Series
GN
Termination
Snap in
Tolerance
20%
Voltage Rating
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Nichicon LGN2D681MELB25 Datasheet
Download the complete datasheet for Nichicon LGN2D681MELB25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

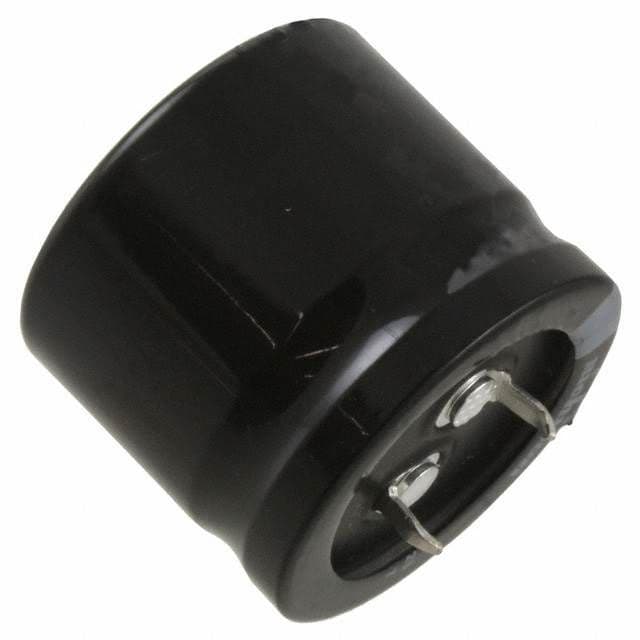

Product Images
