The Nichicon LGN2E681MELZ50 is a 680uF aluminum electrolytic capacitor with a voltage rating of 250V. It features a radial package and is designed for through hole mounting. The capacitor has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a tolerance of 20%. The LGN2E681MELZ50 has a life expectancy of 2000 hours and a leakage current of 1.23mA.
PackageRadial
Capacitance680uF
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGN2E681MELZ50 technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Features | General Purpose |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Pitch | 10mm |
| Leakage Current | 1.23mA |
| Length | 50mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.7A |
| RoHS Compliant | Yes |
| Series | LGN |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGN2E681MELZ50 Datasheet
Download the complete datasheet for Nichicon LGN2E681MELZ50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

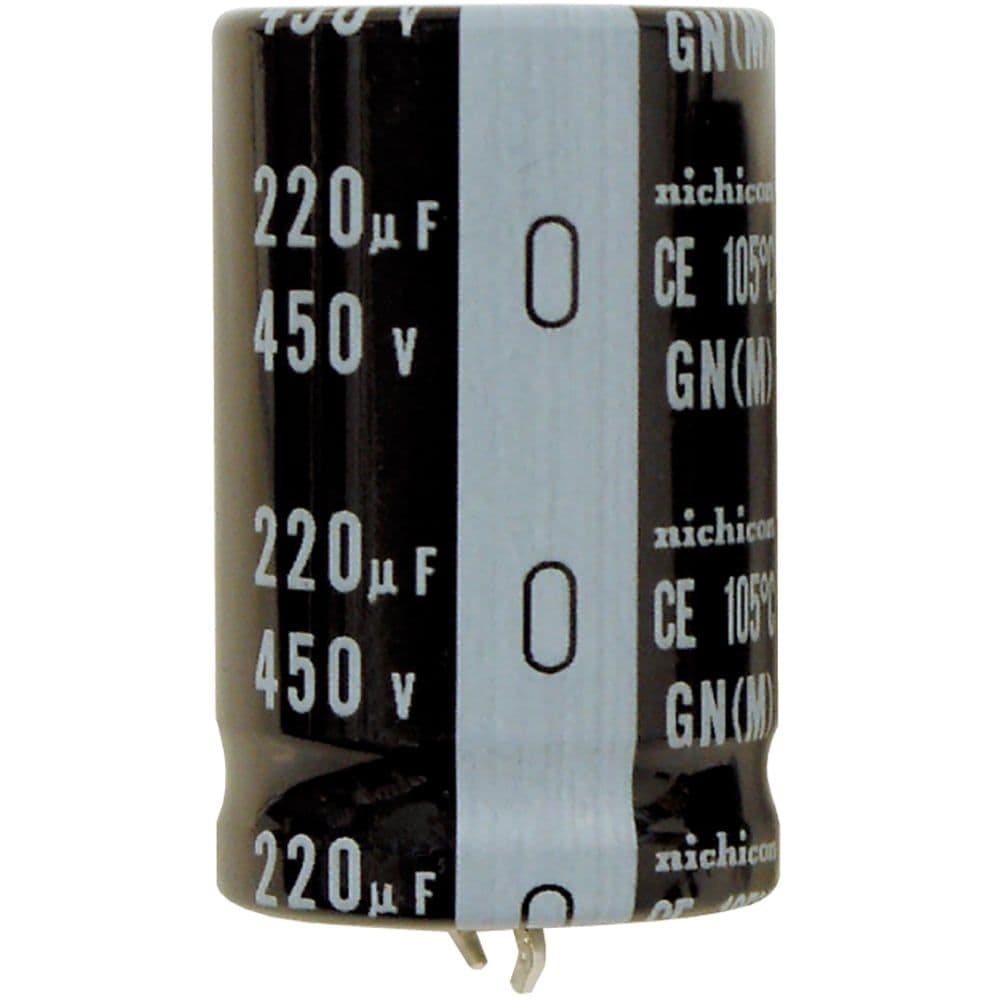

Product Images
