Aluminum electrolytic capacitor, 100µF capacitance, 400V DC rated voltage, 20% tolerance. Features a 10mm lead pitch, 22mm diameter, and 25mm height with snap-in termination for through-hole mounting. Offers a ripple current of 680mA at 120Hz, 600µA leakage current, and a dissipation factor of 0.15%. Rated for 2000 hours at 105°C, with a minimum operating temperature of -25°C. RoHS compliant and lead-free.
PackageRadial
Capacitance100uF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGN2G101MELZ25 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Dissipation Factor | 0.15% |
| Features | General Purpose |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 600uA |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 680mA |
| RoHS Compliant | Yes |
| Series | LGN |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGN2G101MELZ25 Datasheet
Download the complete datasheet for Nichicon LGN2G101MELZ25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

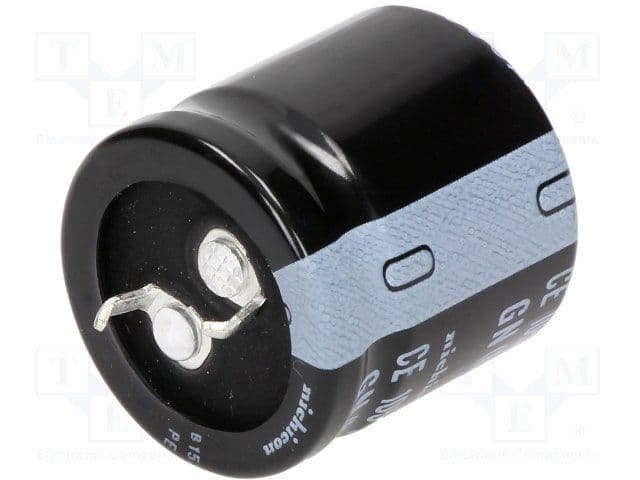

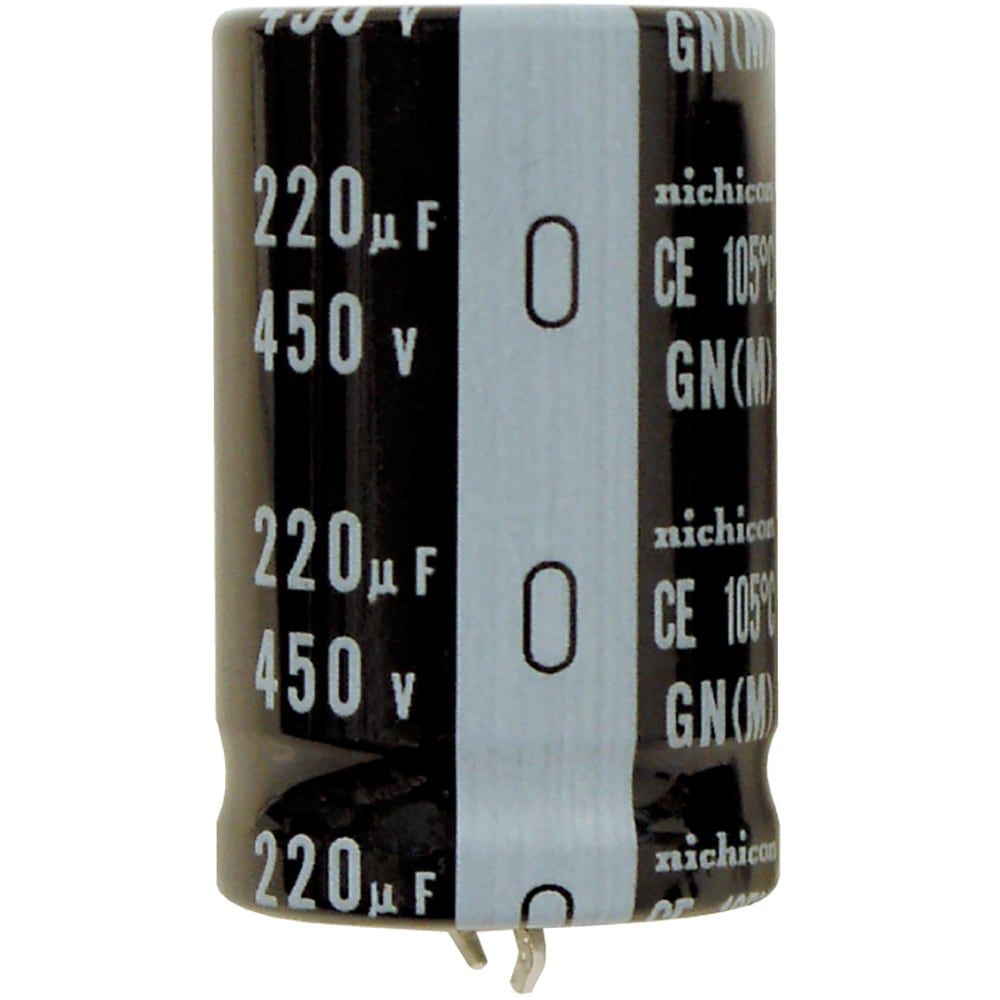

Product Images
