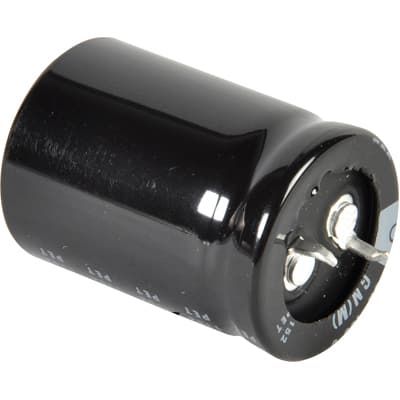

Aluminum electrolytic capacitor, 120µF capacitance, 500V DC rated voltage, and 20% tolerance. Features a 30mm diameter and 30mm height cylindrical construction with snap-in termination and 10mm lead pitch. Offers a ripple current of 680mA, leakage current of 730µA, and a life expectancy of 3000 hours at 105°C. Operates within a temperature range of -25°C to 105°C, suitable for through-hole PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon LGN2H121MELB30 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 120uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 730uA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 680mA |
| RoHS Compliant | Yes |
| Series | GN |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 500V |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| RoHS | Compliant |
Download the complete datasheet for Nichicon LGN2H121MELB30 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Nichicon LGN2H121MELB30
44 W, 12 V offline flyback converter reference design using the Infineon ICE5AR0680BZS-1 CoolSET™ controller with universal AC input and high efficiency.
A technical comparison of quasi-resonant (QR) and fixed-frequency (FF) flyback switching modes using Infineon ICE5xSxG and ICE5QSxG controllers in a 60W power supply.
