Technical Specifications
Nichicon LGN2H181MELA50 technical specifications.
General
| Capacitance | 180uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Pitch | 10mm |
| Length | 50mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 900mA |
| RoHS Compliant | Yes |
| Series | GN |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGN2H181MELA50 Datasheet
Download the complete datasheet for Nichicon LGN2H181MELA50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

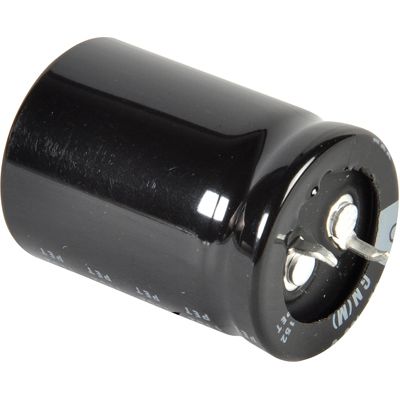

Product Images
