Aluminum electrolytic capacitor, 220µF capacitance, 500V DC rated voltage, with a ±20% tolerance. Features a 1.02A ripple current capability and a 3000-hour life at 105°C. This radial component has a 10mm lead pitch, 0.8mm lead diameter, and measures 35mm in diameter and height. Designed for through-hole PCB mounting, it operates from -25°C to 105°C and is RoHS compliant.
PackageRadial
Voltage500V
Capacitance220uF
Voltage Rating500V
Quick Jump:
Technical Specifications
Nichicon LGN2H221MELC35 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| Height | 35mm |
| Height - Seated (Max) | 1.457inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 990uA |
| Length | 35mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.02A |
| RoHS Compliant | Yes |
| Series | GN |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 500V |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGN2H221MELC35 Datasheet
Download the complete datasheet for Nichicon LGN2H221MELC35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

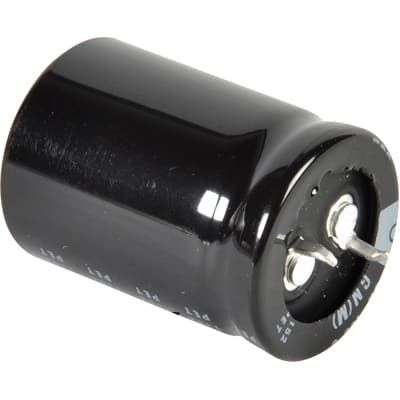

Product Images
