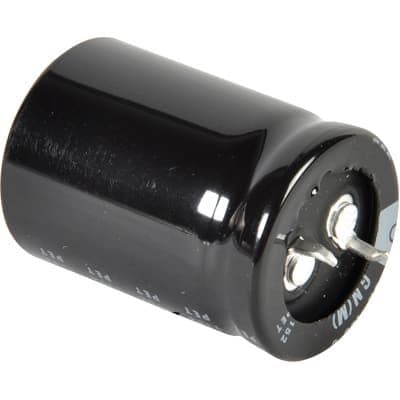

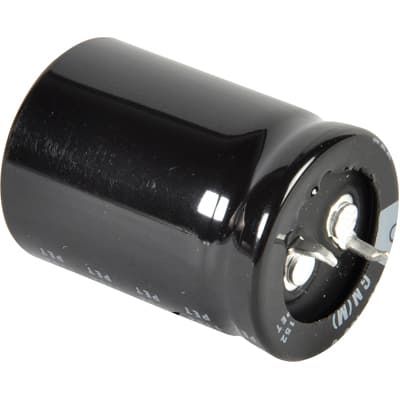

Aluminum electrolytic capacitor with 270µF capacitance and 500V DC rated voltage, featuring 20% tolerance. This cylindrical, through-hole component has a 30mm diameter, 50mm height, and 10mm lead pitch, with snap-in terminations. It offers a ripple current of 1.12A, leakage current of 1.1mA, and a rated life of 3000 hours at 105°C. Operating temperature range is -25°C to 105°C, with RoHS compliance.
PackageRadial
Voltage500V
Capacitance270uF
Voltage Rating500V
Quick Jump:
Technical Specifications
Nichicon LGN2H271MELB50 technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Height | 50mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 1.1mA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.12A |
| RoHS Compliant | Yes |
| Series | LGN |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 500V |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGN2H271MELB50 Datasheet
Download the complete datasheet for Nichicon LGN2H271MELB50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
