Aluminum electrolytic capacitor, 220µF capacitance, 450V DC rated voltage, 20% tolerance. Features a 1.05A ripple current capability and a maximum operating temperature of 105°C. This general-purpose component has a 25mm diameter and 40mm height, with a 10mm lead pitch for through-hole mounting. Designed for 3000 hours of operation, it offers snap-in termination and is RoHS compliant.
PackageRadial
Voltage420V
Capacitance220uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LGN2W221MELA40 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Features | General Purpose |
| Height | 40mm |
| Height - Seated (Max) | 1.654inch |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 940uA |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.05A |
| RoHS Compliant | Yes |
| Series | GN |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 420V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGN2W221MELA40 Datasheet
Download the complete datasheet for Nichicon LGN2W221MELA40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

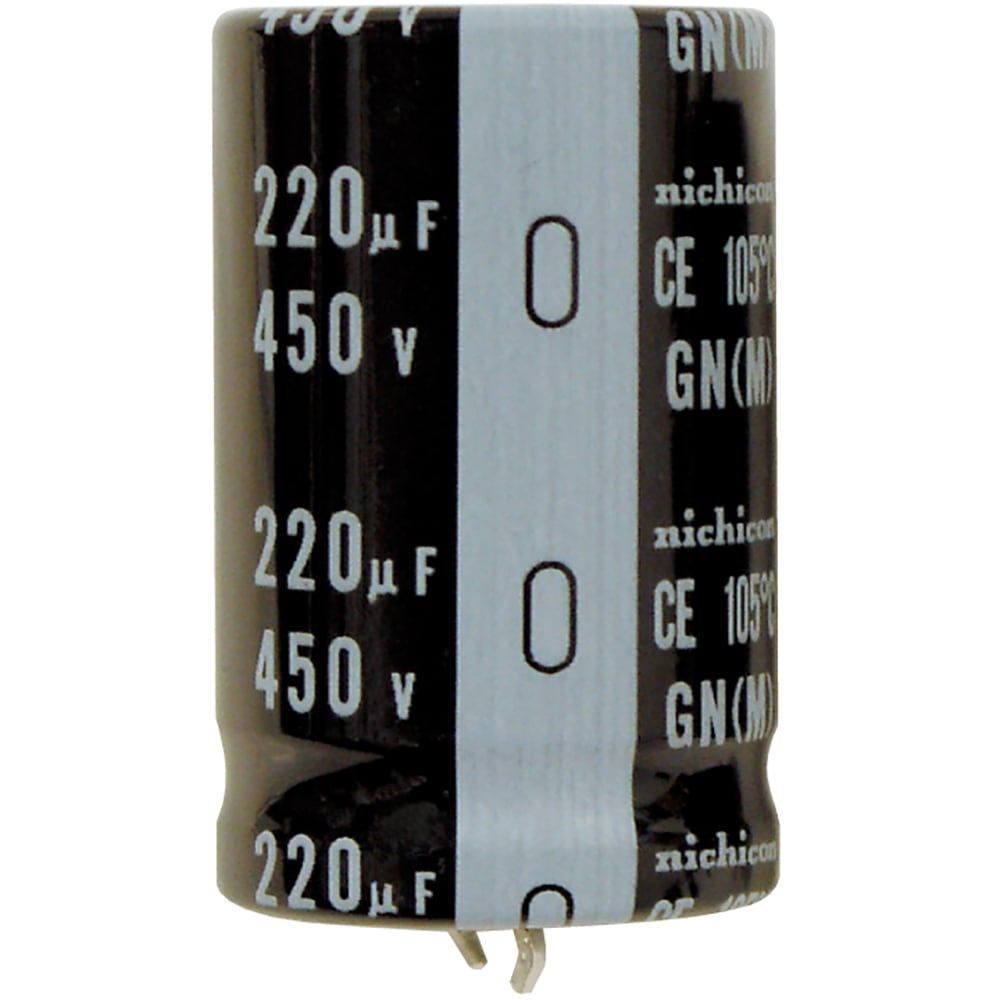

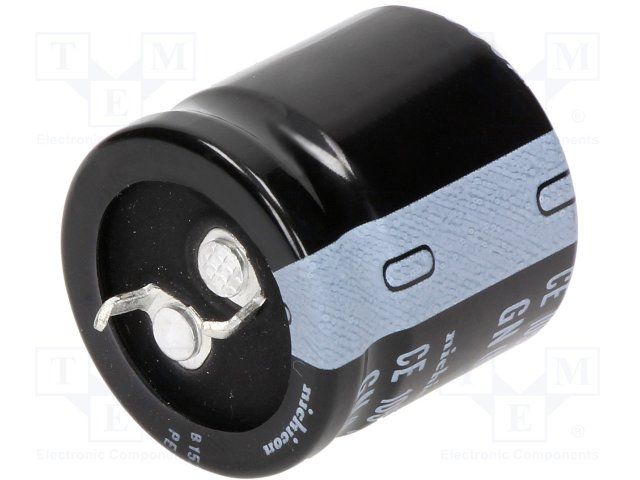

Product Images
