Standard aluminum electrolytic capacitor, 120µF capacitance, 400V DC rated voltage, and 20% tolerance. Features a 750mA ripple current at 120Hz, 650µA leakage current, and a dissipation factor of 0.15%. Designed for through-hole mounting with a 10mm lead pitch and snap-in termination. Operates from -25°C to 105°C with a 10,000-hour life expectancy. Dimensions are 30mm diameter and 25mm height.
PackageRadial
Voltage400V
Capacitance120uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon LGR2G121MELB25 technical specifications.
General
Capacitance
120uF
Package/Case
Radial
Diameter
30mm
Dissipation Factor
0.15%
Height
25mm
Height - Seated (Max)
1.063inch
Lead Diameter
0.8mm
Lead Pitch
10mm
Leakage Current
650uA
Length
25mm
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
750mA
Ripple Current (AC)
750mA
RoHS Compliant
Yes
Series
LGR
Termination
Snap in
Test Frequency
120Hz
Tolerance
20%
Voltage
400V
Voltage Rating
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
Nichicon LGR2G121MELB25 Datasheet
Download the complete datasheet for Nichicon LGR2G121MELB25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

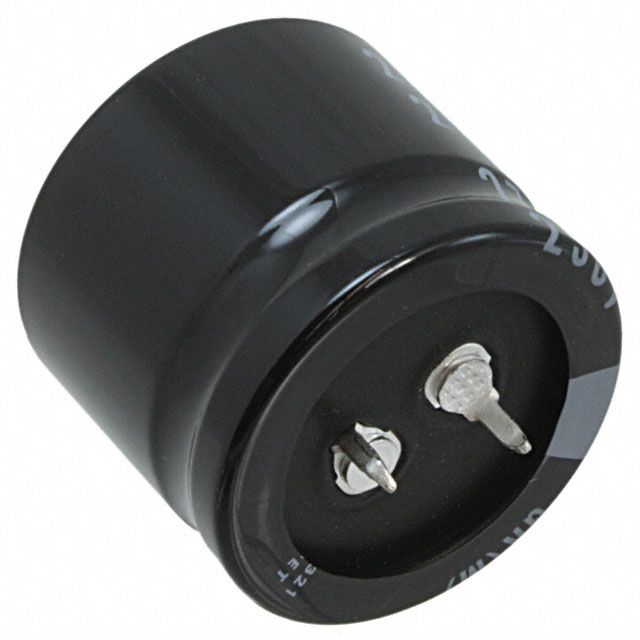

Product Images
