Aluminum electrolytic capacitor, 150µF capacitance, 450V DC rated voltage, 20% tolerance. Features 790mA ripple current at 120Hz, 1.02mA leakage current, and a dissipation factor of 0.2%. Designed for through-hole PCB mounting with snap-in termination, measuring 35mm diameter and 30mm height. Rated for 10000 hours at 105°C, with a minimum operating temperature of -25°C.
PackageRadial
Voltage450V
Capacitance150uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LGR2W151MELC30 technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dissipation Factor | 0.2% |
| Height | 30mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 1.02mA |
| Length | 30mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 790mA |
| RoHS Compliant | Yes |
| Series | GR |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGR2W151MELC30 Datasheet
Download the complete datasheet for Nichicon LGR2W151MELC30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

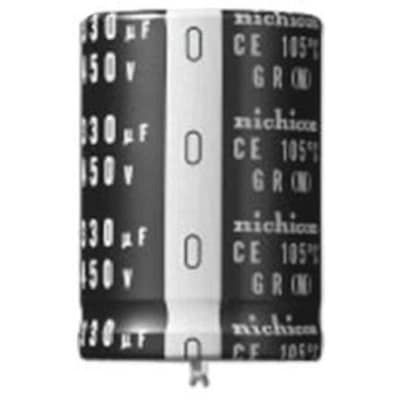

Product Images
