Aluminum electrolytic capacitor with 6.8mF capacitance and 50V DC rated voltage. Features 20% tolerance, 3.37A ripple current, and 1.74mA leakage current. Snap-in termination with a 10mm lead pitch, housed in a 25mm diameter by 45mm height radial package. Rated for 3000 hours at 105°C, with a minimum operating temperature of -40°C. Through-hole mounting, general-purpose application, and RoHS compliant.
PackageRadial
Voltage50V
Capacitance6.8mF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon LGU1H682MELA technical specifications.
General
| Capacitance | 6.8mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 25mm |
| Features | General Purpose |
| Height | 45mm |
| Height - Seated (Max) | 1.85inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 1.74mA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 3.37A |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU1H682MELA Datasheet
Download the complete datasheet for Nichicon LGU1H682MELA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

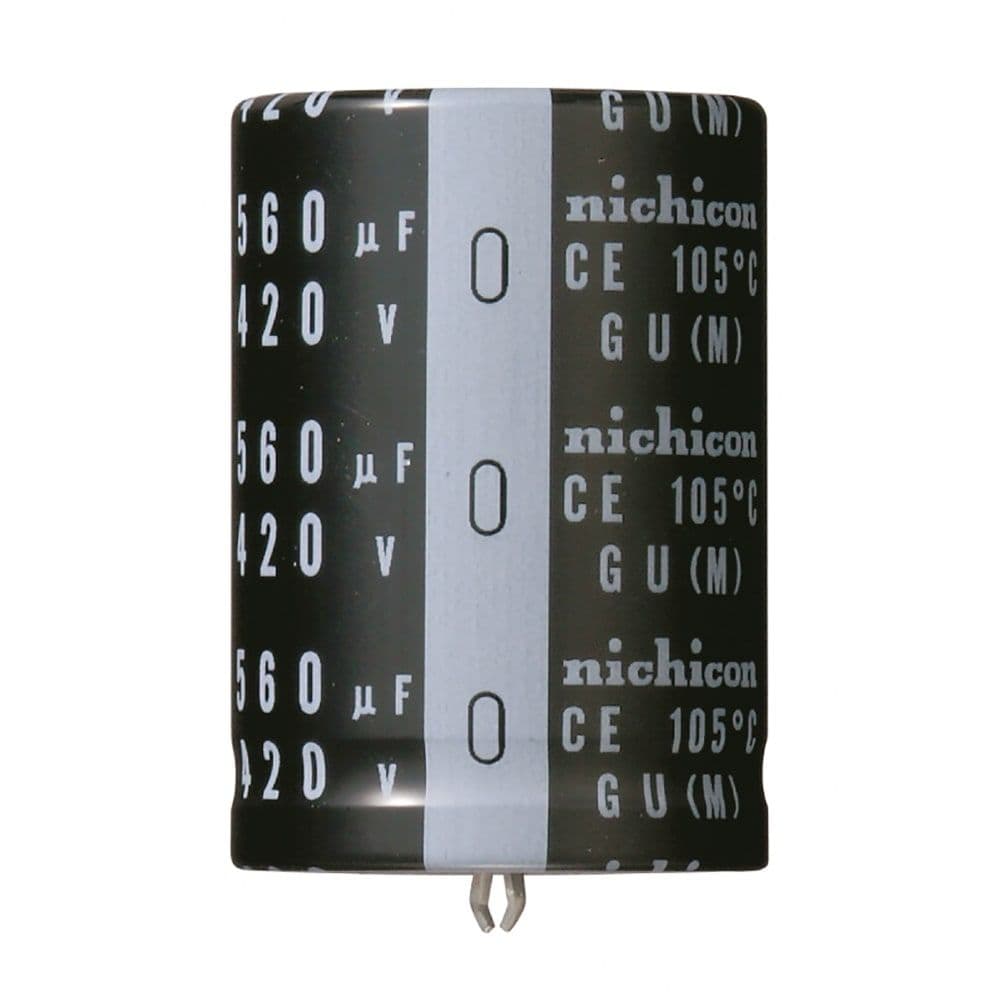

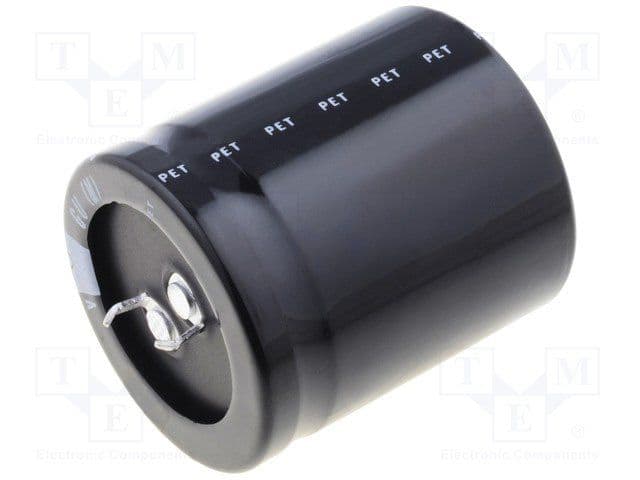

Product Images
