The LGU1J332MELZ is a 3.3mF aluminum electrolytic capacitor with a 63V voltage rating, suitable for general purpose applications. It features a radial package with a 22mm diameter and 45mm length, and is designed for through-hole mounting. The capacitor has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. It is RoHS compliant and available in bulk packaging with 250 units per package.
PackageRadial
Capacitance3.3mF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGU1J332MELZ technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Diameter | 22mm |
| Features | General Purpose |
| Height | 45mm |
| Height - Seated (Max) | 1.85inch |
| Lead Pitch | 10mm |
| Leakage Current | 1.36mA |
| Length | 45mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.33A |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU1J332MELZ Datasheet
Download the complete datasheet for Nichicon LGU1J332MELZ to view detailed technical specifications.
No datasheet is available for this part.

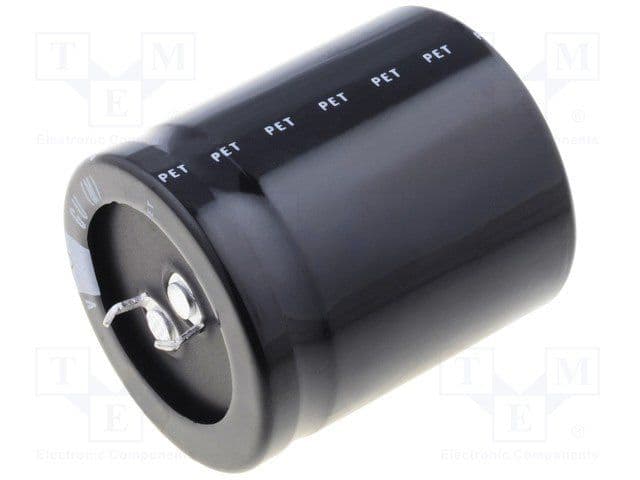

Product Images
