Standard aluminum electrolytic capacitor with 6.8mF capacitance and 63V DC rating. Features 20% tolerance, 3.73A ripple current, and 1.96mA leakage current. Designed for through-hole mounting with a 10mm lead pitch and snap-in termination. Operating temperature range is -40°C to 105°C, with a 3000-hour life expectancy. Dimensions are 30mm diameter and 50mm height.
PackageRadial
Capacitance6.8mF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGU1J682MELB technical specifications.
General
| Capacitance | 6.8mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Features | General Purpose |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 1.96mA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 3.73A |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU1J682MELB Datasheet
Download the complete datasheet for Nichicon LGU1J682MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

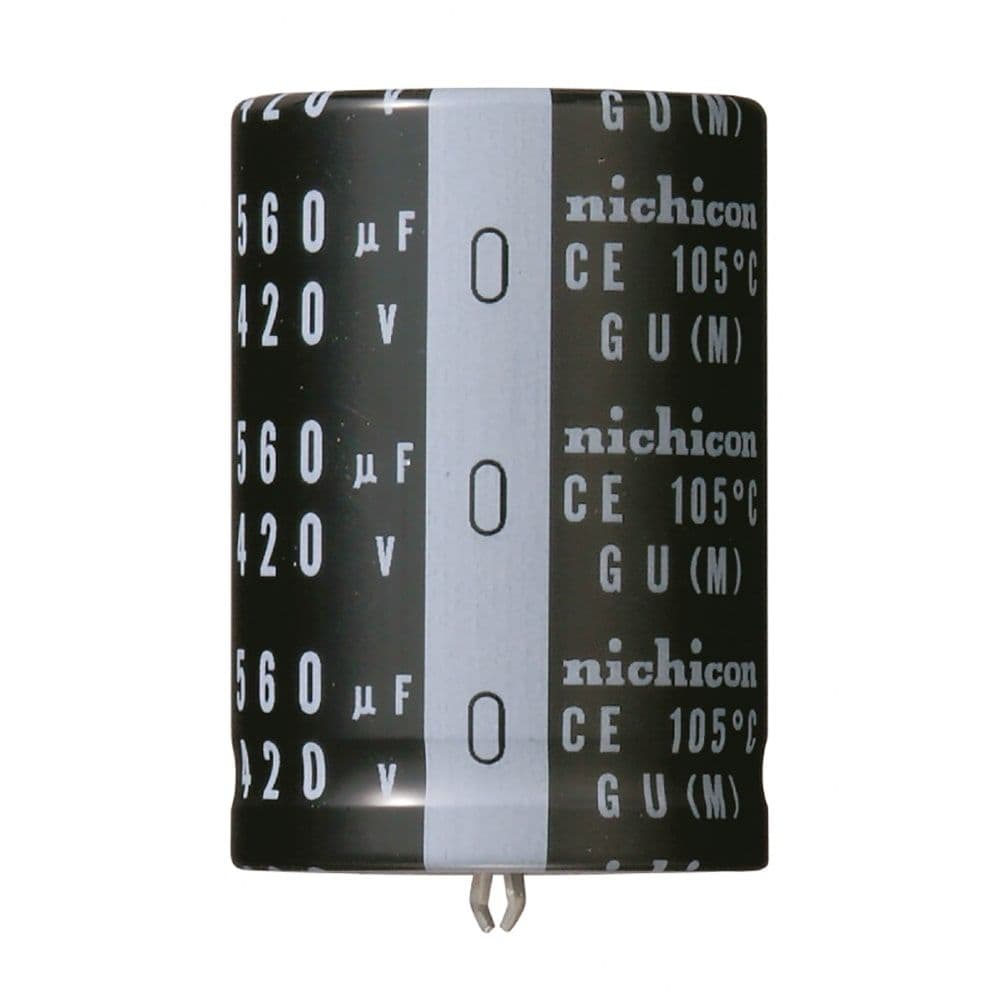

Product Images
