Standard aluminum electrolytic capacitor with 1500µF capacitance and 250V DC rated voltage. Features 20% tolerance, 3A ripple current, and 1.83mA leakage current. Radial package measures 35mm in diameter and 50mm in height, with a 10mm lead pitch for through-hole mounting. Rated for 3000 hours at 105°C, with a minimum operating temperature of -40°C. Snap-in termination and bulk packaging.
PackageRadial
Capacitance1.5mF
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGU2E152MELC technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Diameter
35mm
Height
50mm
Height - Seated (Max)
1.969inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.83mA
Length
50mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
3A
RoHS Compliant
Yes
Series
GU
Termination
Snap in
Tolerance
20%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon LGU2E152MELC Datasheet
Download the complete datasheet for Nichicon LGU2E152MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

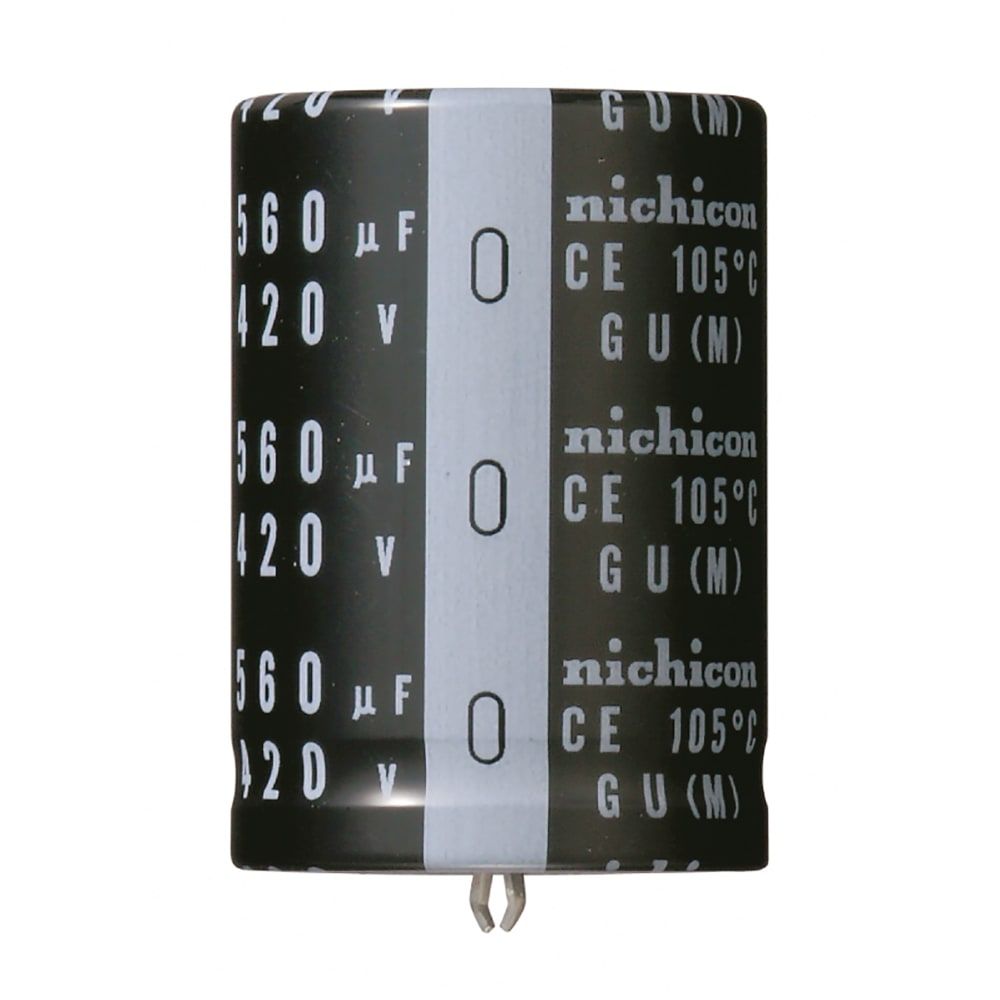

Product Images
