The LGU2F331MELZ is a 330uF radial aluminum electrolytic capacitor with a voltage rating of 315V and a tolerance of 20%. It has a maximum operating temperature of 105°C and a minimum operating temperature of -25°C. The capacitor is designed for general-purpose use and has a leakage current of 960uA. It is available in a bulk packaging with 250 units per package.
PackageRadial
Capacitance330uF
Voltage Rating315V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGU2F331MELZ technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Features | General Purpose |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Pitch | 10mm |
| Leakage Current | 960uA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.33A |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 315V |
| DC Rated Voltage | 315V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU2F331MELZ Datasheet
Download the complete datasheet for Nichicon LGU2F331MELZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

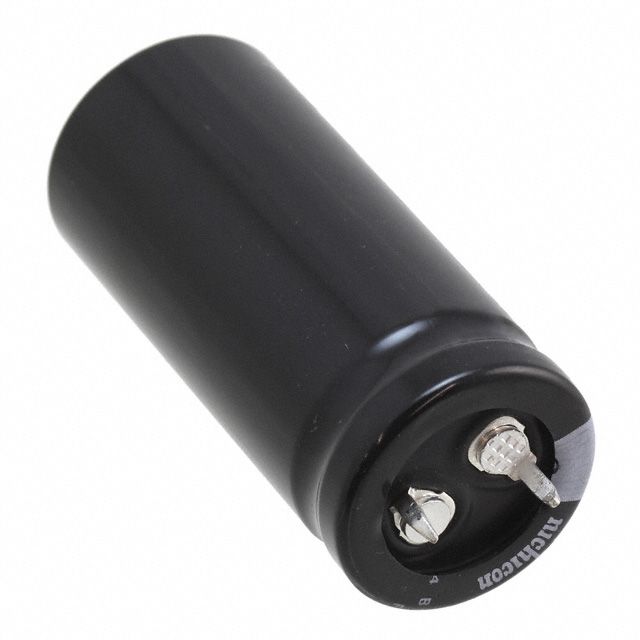

Product Images
