Aluminum electrolytic capacitor with 560µF capacitance and 400V DC rating. Features 20% tolerance, 2.12A ripple current, and 3000 hours life at 105°C. Snap-in termination, 10mm lead pitch, and 35mm diameter by 45mm height. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Capacitance560uF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGU2G561MELC technical specifications.
General
| Capacitance | 560uF |
| Package/Case | Radial |
| Diameter | 35mm |
| Height | 45mm |
| Height - Seated (Max) | 1.772inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.41mA |
| Length | 45mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.12A |
| RoHS Compliant | Yes |
| Series | LGU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU2G561MELC Datasheet
Download the complete datasheet for Nichicon LGU2G561MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

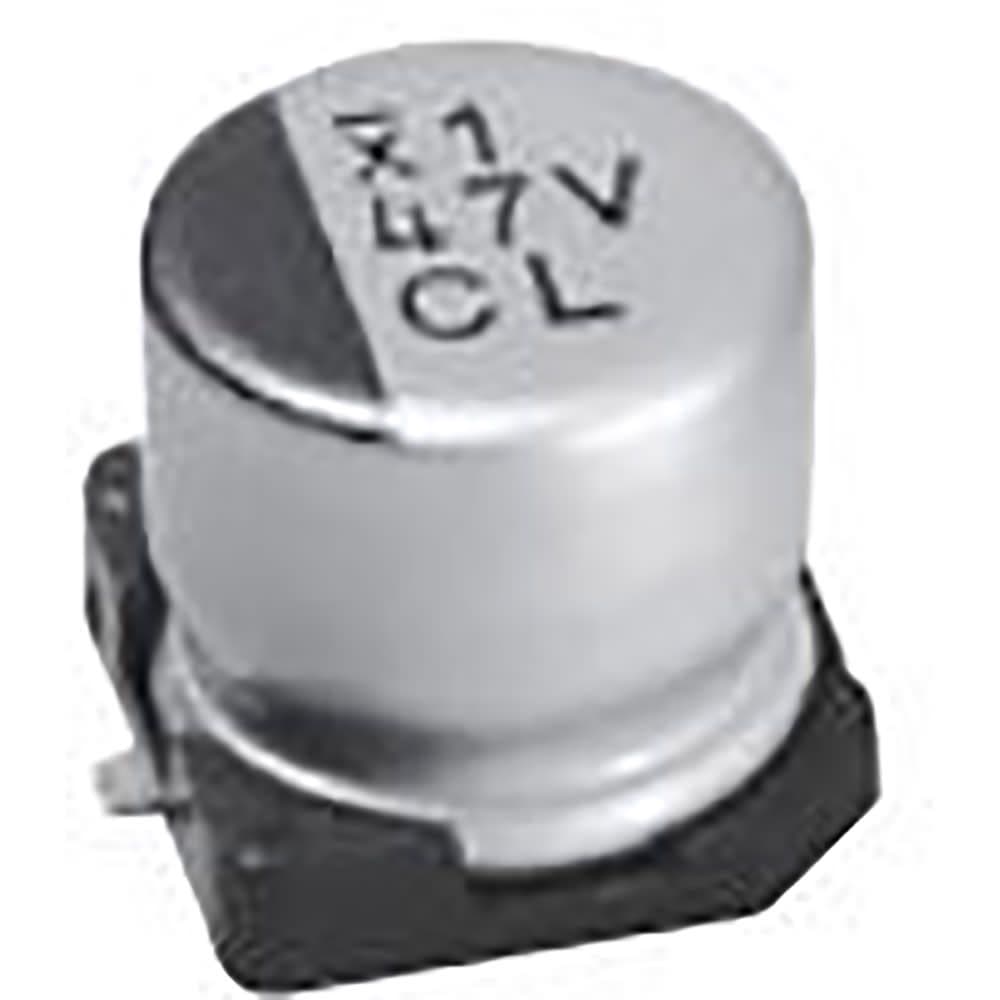

Product Images
