Aluminum electrolytic capacitor with 68µF capacitance and 400V DC rated voltage. Features 20% tolerance, 560mA ripple current, and 3000-hour life at 105°C. Snap-in termination, through-hole mounting, and 10mm lead pitch. Dimensions are 20mm diameter and 30mm height.
PackageRadial
Voltage400V
Capacitance68uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon LGU2G680MELY technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Diameter | 20mm |
| Dielectric Material | Aluminium |
| Height | 30mm |
| Height - Seated (Max) | 1.181inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 490uA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 560mA |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU2G680MELY Datasheet
Download the complete datasheet for Nichicon LGU2G680MELY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

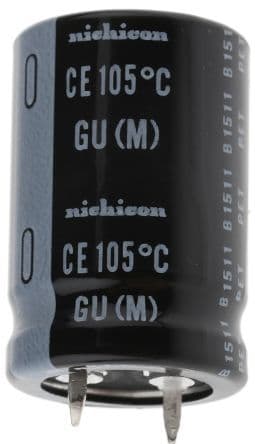

Product Images
