Aluminum electrolytic capacitor with 150µF capacitance and 450V DC rated voltage. Features 20% tolerance, 880mA ripple current at 120Hz, and a low dissipation factor of 0.2%. Designed for through-hole PCB mounting with 10mm lead pitch and 0.8mm lead diameter. Cylindrical construction with snap-in termination, measuring 30 x 30mm. Operates from -25°C to 105°C with a 3000-hour life rating.
PackageRadial
Voltage450V
Capacitance150uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LGU2W151MELB technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 30mm |
| Height - Seated (Max) | 1.181inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.23mA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 880mA |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU2W151MELB Datasheet
Download the complete datasheet for Nichicon LGU2W151MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

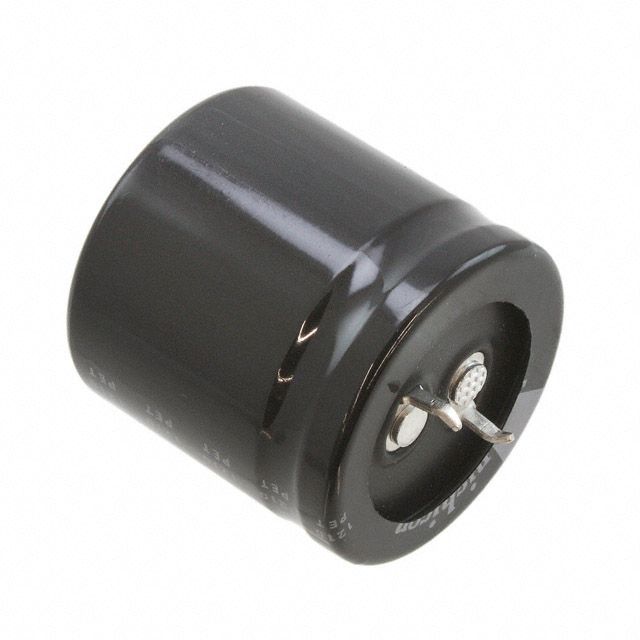

Product Images
