Aluminum electrolytic capacitor, 220µF capacitance, 450V DC rated voltage, 20% tolerance. Features a 35mm diameter, 30mm height, and 10mm lead pitch for through-hole PCB mounting. Offers 1.12A ripple current, 940µA leakage current, and a 3000-hour life at 105°C maximum operating temperature. Snap-in termination and lead-free construction.
PackageRadial
Voltage450V
Capacitance220uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LGU2W221MELC technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 35mm |
| Height | 30mm |
| Height - Seated (Max) | 1.181inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 940uA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.12A |
| RoHS Compliant | Yes |
| Series | GU |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGU2W221MELC Datasheet
Download the complete datasheet for Nichicon LGU2W221MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

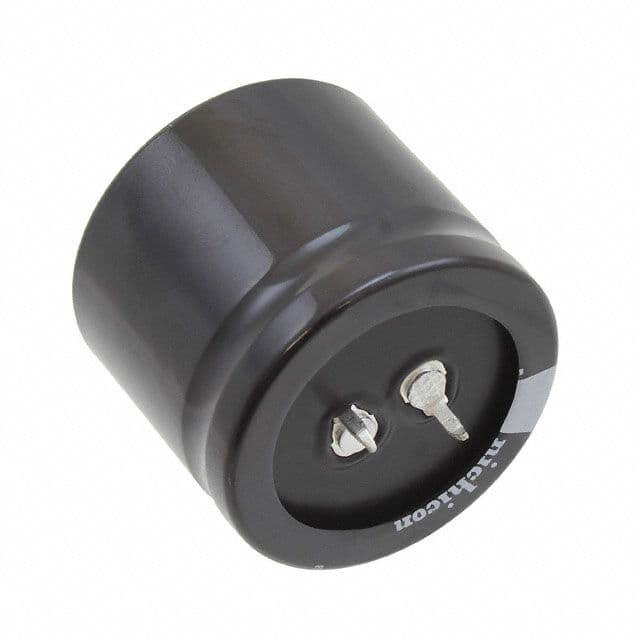

Product Images
