Technical Specifications
Nichicon LGW2G181MELZ40 technical specifications.
General
| Capacitance | 180uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Features | General Purpose |
| Height - Seated (Max) | 1.575inch |
| Lead Pitch | 0.394inch |
| Length | 40mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ripple Current | 1.43A |
| RoHS Compliant | Yes |
| Series | GW |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGW2G181MELZ40 Datasheet
Download the complete datasheet for Nichicon LGW2G181MELZ40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

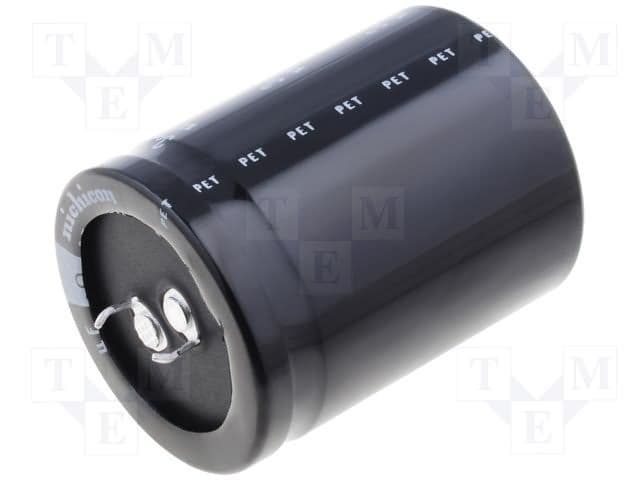

Product Images
