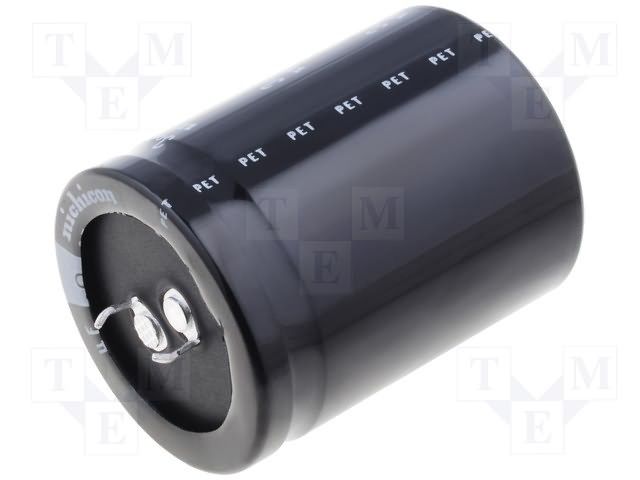

The LGW2W151MELB25 is a 150uF aluminum electrolytic capacitor with a voltage rating of 450V and a tolerance of 20%. It has a radial package with a seated height of 1.181 inches and a lead pitch of 0.394 inches. The capacitor is designed for general purpose use and is RoHS compliant. It operates within a temperature range of -55°C to 105°C and has a maximum ripple current of 1.31A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon LGW2W151MELB25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 150uF |
| Package/Case | Radial |
| Features | General Purpose |
| Height - Seated (Max) | 1.181inch |
| Lead Pitch | 0.394inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 3000°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Ripple Current | 1.31A |
| RoHS Compliant | Yes |
| Series | GW |
| Tolerance | 20% |
| Voltage Rating | 450V |
| RoHS | Compliant |
