Nichicon LGX2H331MELC45 technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Height - Seated (Max) | 1.85inch |
| Lead Pitch | 0.394inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Ripple Current | 1.6A |
| RoHS Compliant | Yes |
| Series | GX |
| Tolerance | 20% |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGX2H331MELC45 Datasheet
Download the complete datasheet for Nichicon LGX2H331MELC45 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

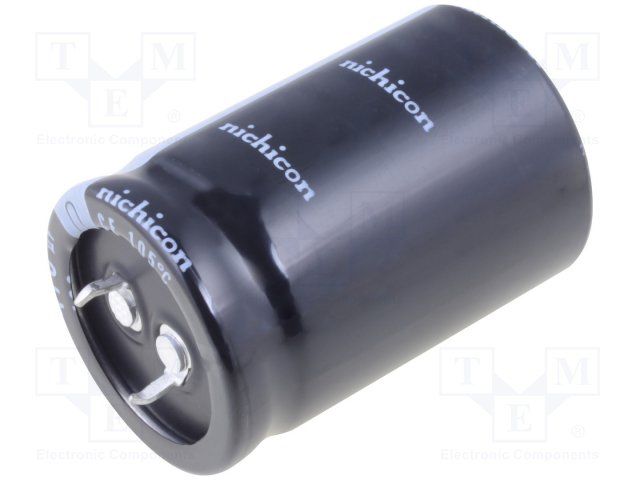

Product Images
