Standard aluminum electrolytic capacitor with 220µF capacitance and 450V DC rated voltage. Features a 20% tolerance, 1.17A ripple current capability, and a 10mm lead pitch. Designed for through-hole mounting with snap-in termination, measuring 30mm in diameter and 35mm in height. Operates within a temperature range of -25°C to 105°C, offering a lifespan of 5000 hours at rated conditions.
Voltage450V
Capacitance220uF
Voltage Rating450V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LGX2W221MELB35 technical specifications.
General
| Capacitance | 220uF |
| Diameter | 30mm |
| Features | General Purpose |
| Height | 35mm |
| Height - Seated (Max) | 1.181inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 940uA |
| Length | 35mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.17A |
| RoHS Compliant | Yes |
| Series | GX |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LGX2W221MELB35 Datasheet
Download the complete datasheet for Nichicon LGX2W221MELB35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

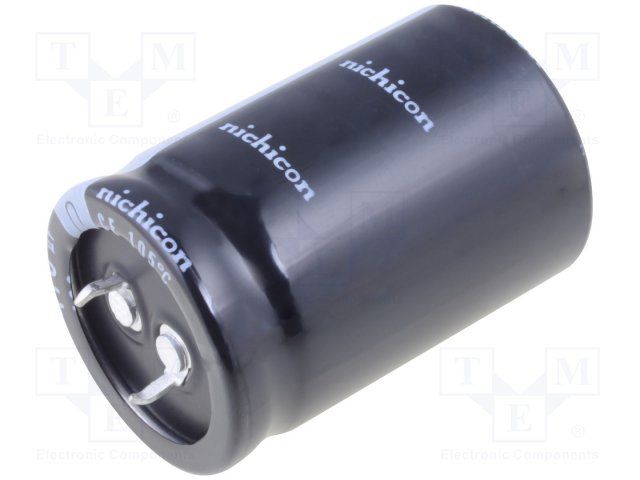

Product Images
