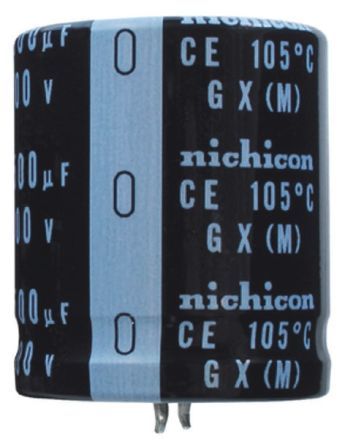

Aluminum electrolytic capacitor, 330µF capacitance, 450V DC rated voltage, 20% tolerance. Features snap-in termination, 10mm lead pitch, and a 30mm diameter by 45mm height radial package. Rated for 1.51A ripple current, 1.15mA leakage current, and a lifespan of 5000 hours at 105°C. Through-hole mounting, lead-free, RoHS compliant.
PackageRadial
Voltage450V
Capacitance330uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LGX2W331MELB45 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
30mm
Height
45mm
Height - Seated (Max)
1.85inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.15mA
Length
45mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.51A
RoHS Compliant
Yes
Series
GX
Termination
Snap in
Tolerance
20%
Voltage
450V
Voltage Rating
450V
DC Rated Voltage
450V
Compliance
RoHS
Compliant
Datasheet
Nichicon LGX2W331MELB45 Datasheet
Download the complete datasheet for Nichicon LGX2W331MELB45 to view detailed technical specifications.
