Nichicon
LLG2C222MELB40
Cap Aluminum Lytic 2200uF 160V 20% (30 X 40mm) Snap-In 10mm 4450mA 2000h 85°C Bulk
PackageRadial
Capacitance2.2mF
Voltage Rating160V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LLG2C222MELB40 technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Diameter
30mm
Height - Seated (Max)
1.654inch
Lead Free
Lead Free
Lead Pitch
0.394inch
Leakage Current
1.77mA
Length
40mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Ripple Current
4.45A
RoHS Compliant
Yes
Series
LG
Termination
Snap in
Tolerance
20%
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLG2C222MELB40 Datasheet
Download the complete datasheet for Nichicon LLG2C222MELB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

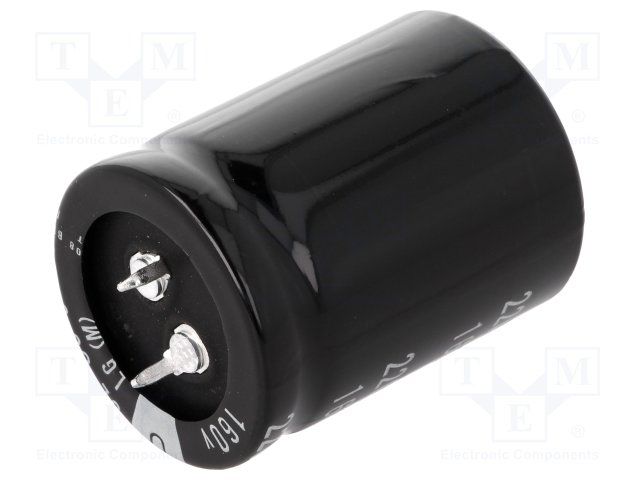

Product Images
