Aluminum electrolytic capacitor with 4700µF capacitance and 50V DC rated voltage. Features 20% tolerance, 3.01A ripple current at 120Hz, and a dissipation factor of 0.3%. Designed for through-hole PCB mounting with a 10mm lead pitch and snap-in termination. Operating temperature range is -40°C to 85°C with a 3000-hour life expectancy. Dimensions are 30mm diameter and 25mm height.
PackageRadial
Voltage50V
Capacitance4.7mF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon LLS1H472MELB technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
30mm
Dielectric Material
Aluminium
Dissipation Factor
0.3%
Features
General Purpose
Height
25mm
Height - Seated (Max)
1.063inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.45mA
Length
25mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
3.01A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Test Frequency
120Hz
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS1H472MELB Datasheet
Download the complete datasheet for Nichicon LLS1H472MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

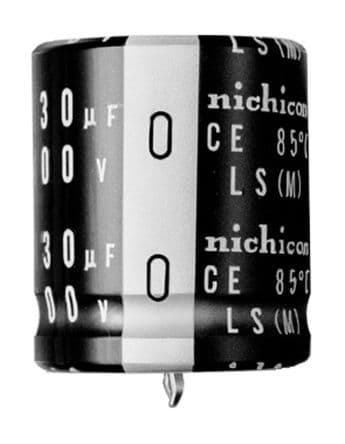

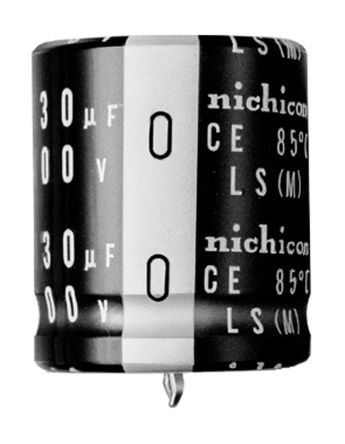

Product Images
